| front foil material | polyester | ||
| protection type transmitter back side (ip) | ip20 | ||
| protection type transmitter front/wall-installation nema | nema 4x | ||
| electrical connection plate material | epoxide | ||
| electrical connection 2 number of contacts | 10 pce | ||
| electrical connection 3 quantity | 1 pce | ||
| electrical connection 2 quantity | 1 pce | ||
| electrical connection 1 quantity | 1 pce | ||
| controller type | single-channel | ||
| Type | 8,611 | ||
| output 4 digital transistor current | 1,5 a | ||
| output 3 digital transistor current | 1,5 a | ||
| digital output 2 transistor contactless | 1,5 a | ||
| output 2 digital type | transistor | ||
| digital output 1 transistor contactless | 1,5 a | ||
| output type digital quantity | 4 | ||
| output 1 type analog current | 4-20 ma | ||
| input type digital quantity | 3 pce | ||
| input 2 type analog current | 4-20 | ||
| input 1 type analog current | 4-20 ma | ||
| input type analog quantity | 3 pce | ||
| temperature environment max | 70 °c | ||
| electronics body material | pp (polypropylene) | ||
| cover material | pc (polycarbonate) | ||
| dc voltage | yes | ||
| voltage min / rated voltage | 21,6 v |
| front foil material category | elastomers | ||
| protection type transmitter front/wall-installation (ip) | ip65 | ||
| Display type | display | ||
| electrical connection 3 number of contacts | 9 pce | ||
| electrical connection 1 number of contacts | 8 pce | ||
| electrical connection 3 type | screw terminal | ||
| electrical connection 2 type | screw terminal | ||
| electrical connection 1 type | screw terminal | ||

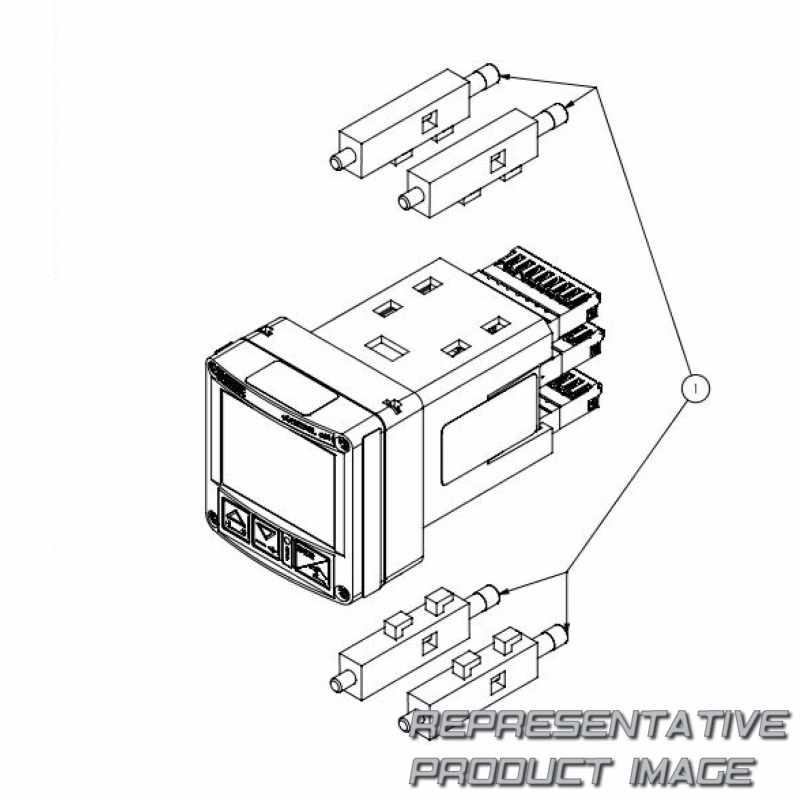

| construction device | remote panel | ||
| parametrisation local | yes | ||
| output 4 digital type | transistor | ||
| output 3 digital type | transistor | ||
| output 2 digital transistor connection pnp | yes | ||
| output 1 digital transistor connection pnp | yes | ||
| output 1 digital type | transistor | ||
| output 1 type analog voltage | 0-10 v | ||
| output type analog quantity | 1 | ||
| input 3 type analog pt100 | yes | ||
| input 2 type analog voltage | 0-10 | ||
| input 1 type analog voltage | 0-10 v | ||
| seal housing/cover material | silicone | ||
| temperature environment min | 0 °c | ||
| electronics body material category | plastics | ||
| screws material | stainless steel | ||
| voltage max / rated voltage | 26,4 v | ||
| Customscode | 90328900 |
