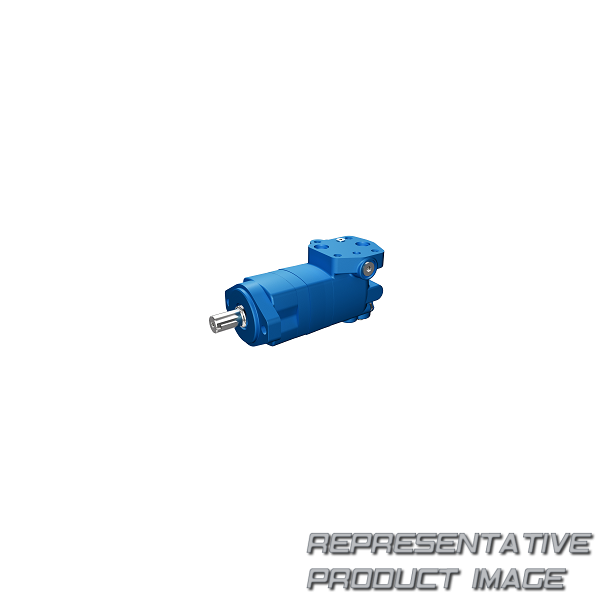

| motors | 2000 series; two-speed motor | ||
| Series | 22 : 2000 series (2-speed 1:2 ratio) | ||
| Mounting type | ah : standard, 4 bolt, 82.6 [3.25] pilot dia. 13.59 [.535] dia. holes on 106.4 [4.19] dia. bolt circle. | ||
| port type | aa : .875-14 unf-2b sae o-ring ports - staggered ports with additional mounting holes with .375-24 unf-2b thread | ||
| shuttle valve / low pressure relief | 0 : none | ||
| geroler option | 1 : standard | ||
| accessories | 00 : none | ||
| special features (assembly) | 00 : none | ||
| customer identification | aa : none |
| product | m : motor | ||
| displacement | 240 : 393.8 cm3/r [24.03 in3/r] | ||
| output shaft | 02 : 31.75 [1.250] dia. straight shaft with .375-16 unc-2b thread in end, 7.938 [.3125] sq. x 31.75 [1.250] straight key | ||
| case flow option/selector valve | 01 : .5625-18 unf-2b sae o-ring case drain port, .4375-20 unf-2b sae o-ring pilot control port, optional .4375-20 unf-2b sae case drain port for pilot operated normally low speed | ||
| pressure flow option | 00 : none | ||
| seal option | 0 : standard | ||
| special features (hardware) | 00 : none | ||
| paint/packaging | aa : no paint, individual box | ||
| design code | a : one (001) |
