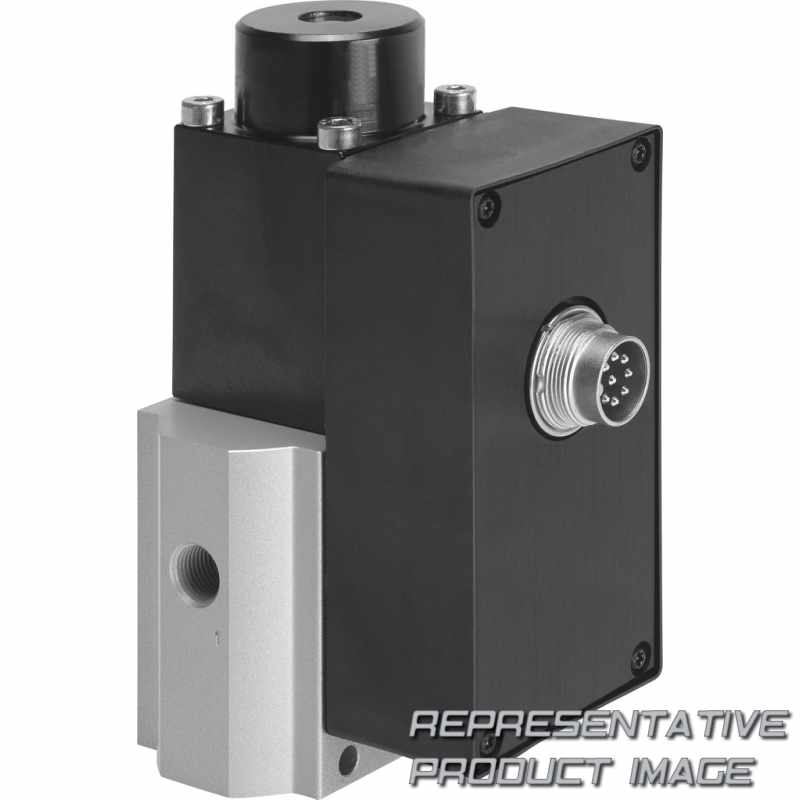

| Material membrane | NBR | ||
| Note on materials | RoHS-compliant | ||
| Pneumatic connection, port 2 | G1/8 | ||
| Type of mounting | With through-hole | ||
| Product weight | 915 g | ||
| Degree of protection | IP65 | ||
| LABS (PWIS) conformity | VDMA24364-B2-L | ||
| CE marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | ||
| KC mark | KC-EMV | ||
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) | ||
| SETPOINT/ACTUAL values | Current type 4-20 mA | ||
| Nominal operating voltage DC | 24 V | ||
| Switching time on | 220 ms | ||
| Max. pressure hysteresis | 0,01 bar | ||
| Pressure regulation range | 0 bar ... 10 bar | ||
| Valve function | 3-way proportional-pressure regulator, closed | ||

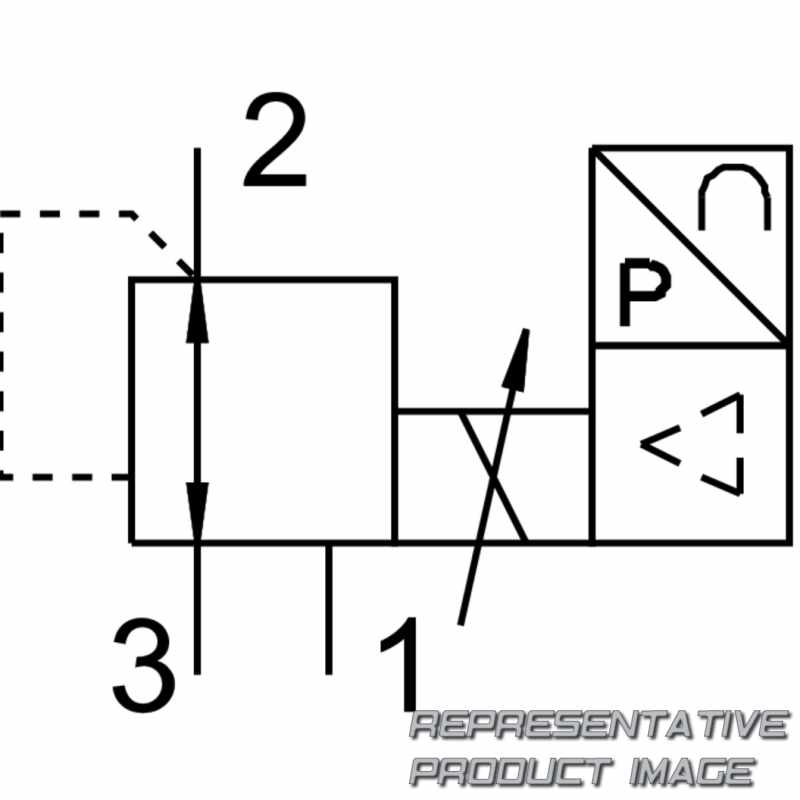

| Symbol | 00995305 | ||
| Short circuit current rating | For all electrical connections | ||
| Mounting position | optional | ||
| Type of actuation | Electric | ||
| Nominal size, supply | 3 mm |
| Material housing | Wrought aluminium alloy | ||
| Pneumatic connection, port 3 | G1/8 | ||
| Pneumatic connection, port 1 | G1/8 | ||
| Electrical connection | 8-pin M16x0.75 Plugs To DIN 45326 Round design | ||
| Ambient temperature | 0 °C ... 50 °C | ||
| Media temperature | 0 °C ... 60 °C | ||
| Corrosion resistance class CRC | 2 - Moderate corrosion stress | ||
| CE mark (see declaration of conformity) | To EU EMC Directive In accordance with EU RoHS Directive | ||
| Approval | RCM trademark | ||
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases | ||
| Residual ripple | 10 % | ||
| Operational voltage range DC | 18 V ... 30 V | ||
| Switching time off | 410 ms | ||
| Inlet pressure 1 | 1,1 MPa ... 1,2 MPa | ||
| Operating pressure | ≤ 12 bar | ||
| Reverse polarity protection | For all electrical connections | ||
| Safety instructions | Safety position MPPES: if the power supply cable is interrupted, the output pressure drops to 0 bar. | ||
| Design | Directly actuated piston regulator | ||
| Sealing principle | Soft | ||
| Nominal size, exhaust | 2 mm |
