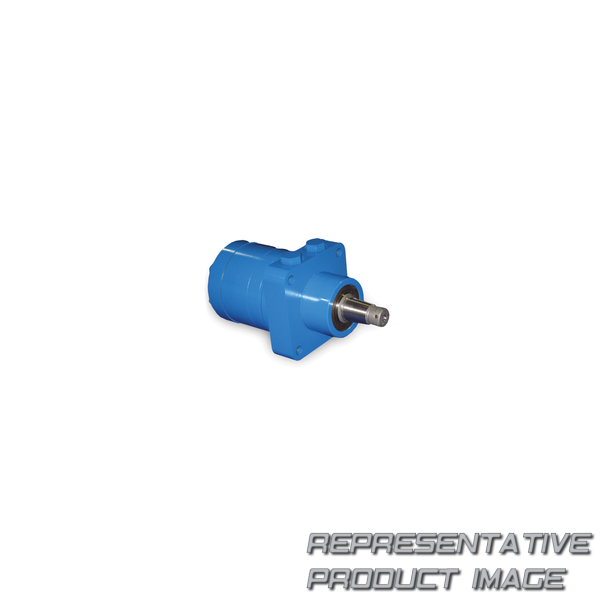

| motors | delta motor | ||
| Series | dl : delta series | ||
| Mounting type | ab : standard, 6 bolt, 82.6[3.25] pilot dia. 13.59[.535] dia holes on 106.4[4.19] dia bolt circle. 2.54 [.100] pilot length. sae a, magneto. | ||
| ports | ac : g 1/2 bsp straight thread ports | ||
| geroler option | b : tight fitting | ||
| accessories | 00 : none | ||
| special features (assembly) | 00 : none | ||
| customer identification | 00 : none |
| product | m : motor | ||
| displacement | 121 : 198 cm3/r [12.1 in3/r] | ||
| output shaft | 02 : 31.75 [1.250] dia. .125;1 tapered shaft per sae j501 with 1.000-20 unef-2a threaded shaft end and slotted hex nut, 7.938[.3125] sq x 25.40 [1.000] straight key | ||
| pressure/flow option | 0 : none | ||
| seal option | 0 : standard | ||
| special features (hardware) | 00 : none | ||
| paint/packaging | ab : primer low gloss black, individual box | ||
| design code | b : two(2) |
