| Material cable sheath | polyurethane | ||
| cable-Ø | 5.2 mm | ||
| max. current | 4 a | ||
| min. ambient temperature | -25 °c | ||
| Cable length | 10 m | ||
| number of wires | 4 | ||
| cable exit angle | 180° | ||
| electrical connection 1, coding | a-coded | ||
| electrical connection 1, thread size | m12x1 | ||
| operating voltage dc, max. | 48 v ac | ||
| cable | with cable |
| Weight | 0.373 kg | ||
| wire cross-section | 0.34 mm² | ||
| max. ambient temperature | 70 °c | ||
| Protection class | ip67 | ||
| Shielding | unshielded | ||
| electrical connection 2, type | open cable ends | ||
| cable exit | straight | ||
| electrical connection 1, number of poles | 5-pin | ||
| electrical connection 1, type | socket | ||
| operating voltage ac max. | 48 v dc | ||

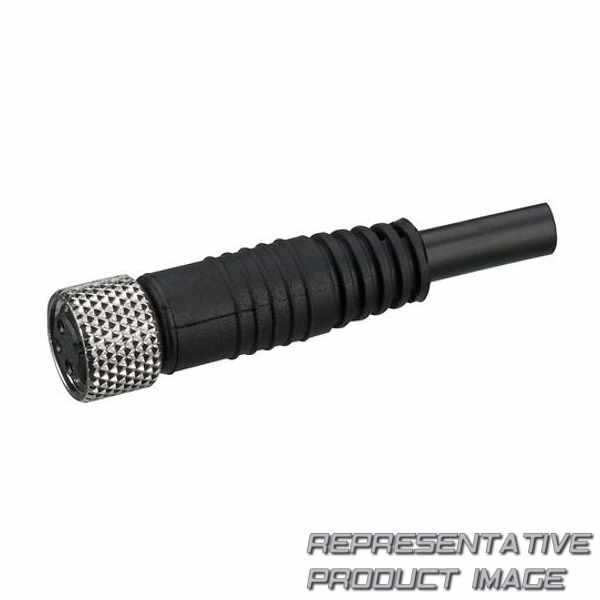

| Type | round plug connectors |
