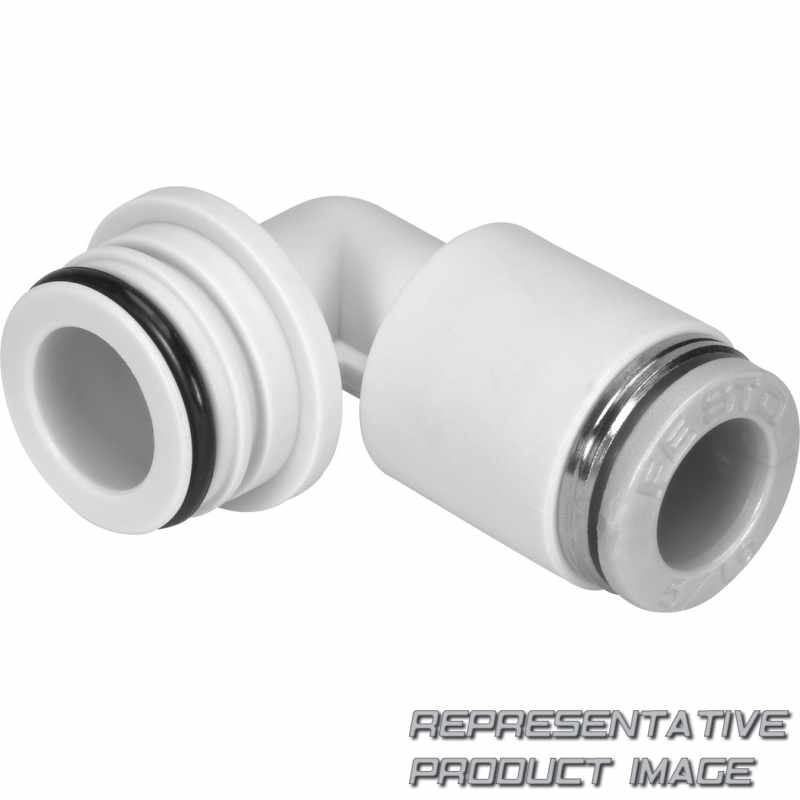

FESTO 132949 cartridge

Name: 132949 FESTO
Brand: FESTO
SKU: 735223-en-gbp
Price: 2.61 GBP
Availability: SoldOut

QSPLKG18-3/8-U

£2.61 x 10 ~~£4.43~~ -40%

Limited stock only available on quotation

Specifications

Size	Standard
Mounting Position	optional

Pneumatic connection	QSP...18
Weight	109g

Material tubing clamp component		High-alloy stainless steel
Material release ring		POM
Note on materials		RoHS-compliant
Pneumatic connection, port 2		For tubing outside diameter of 3/8"
Product weight		10,9 g
Corrosion resistance class CRC		1 - Low corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-]
Operating pressure complete temperature range		-0,95 bar ... 10 bar
Size of pack		10
Nominal size		6,5 mm

Material tubing seal		NBR
Material housing		PA-reinforced
Colour of release ring		grey
Pneumatic connection, port 1		QSP...18
Ambient temperature		-5 °C ... 60 °C
Note on operating and pilot medium		Lubricated operation possible
Maritime classification		See certificate
Design		Push-pull principle
Mounting position		optional
Size		Standard
