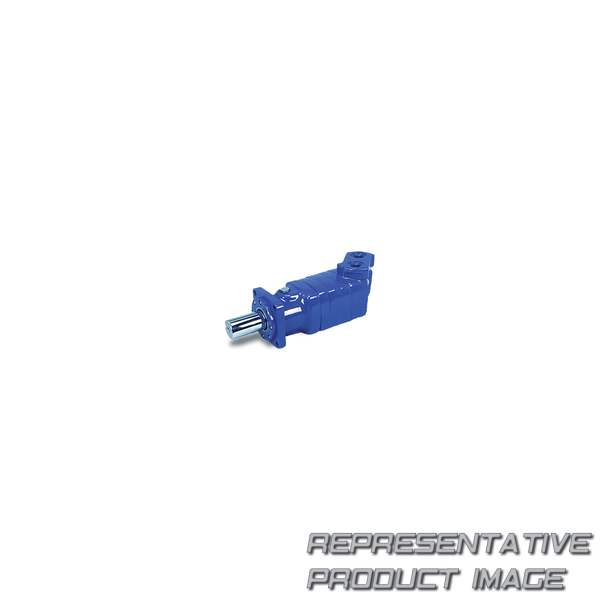

| motors | 10000 series; standard mount motor | ||
| Series | 10 : 10,000 series | ||
| Mounting type | aa : standard, 4 bolt; 127.0 [5.00] pilot dia. 16.76 [.660] dia. holes on 161.92 [6.375] dia. bolt circle. | ||
| ports | ab : 31.75 [1.250] dia. 4 bolt split flange, staggered ports with .4375-14 unc-2b tapped mounting holes | ||
| low pressure relief | 0 : none | ||
| geroler option | 0 : standard | ||
| accessories | 00 : none | ||
| special feature (assembly) | 00 : none | ||
| customer identification | 00 : none |
| product | m : motor | ||
| displacement | 293 : 479.5 cm3/r [29.26 in3/r] | ||
| output shaft | 01 : 57.15 [2.250] dia. straight shaft with .500-20 unf-2b thread in end, 12.7 [.50] square x 63.5 [2.50] straight key | ||
| case flow options | 01 : .5625-18 unf-2b case drain sae o-ring port | ||
| pressure / flow option | 00 : none | ||
| seal option | 0 : standard | ||
| special feature (hardware) | 00 : none | ||
| paint / packaging | 00 : none | ||
| design code | c : third |
