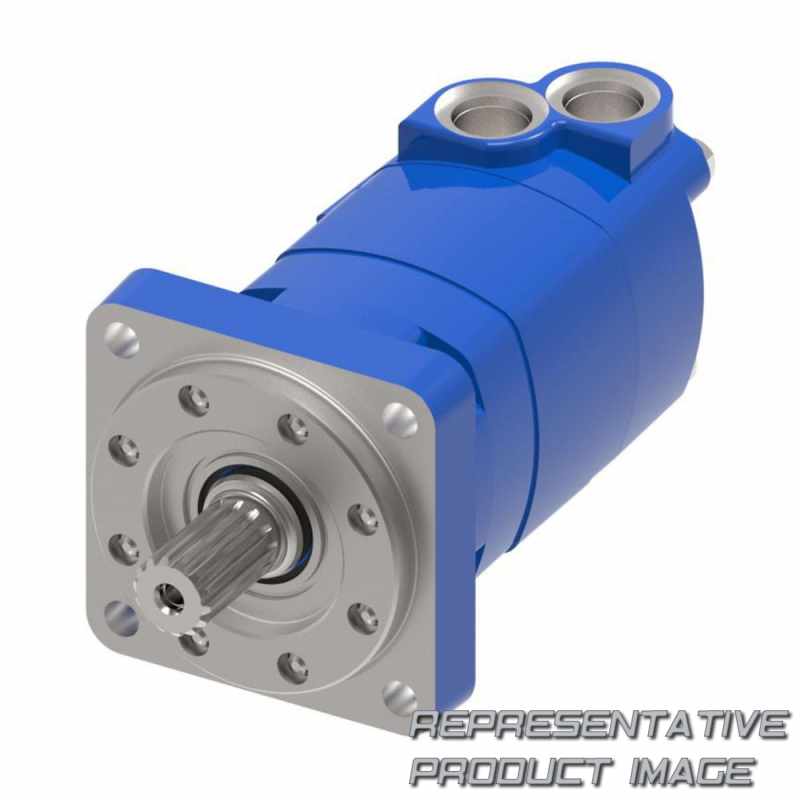

| motors | 4000 series; standard mount motor | ||
| Series | 04 : 4000 series | ||
| Mounting type | af : standard, 4 bolt; 127.00 [5.000] pilot dia.14.27 [.562] dia. holes on 161.92 [6.375] dia. bolt circle. (sae c) | ||
| ports | ab : 1.0625-12 un-2b sae o-ring ports - staggered ports | ||
| low pressure relief | 0 : none | ||
| geroler option | 0 : standard | ||
| accessories | 00 : none | ||
| special features (assembly) | 00 : none | ||
| customer identification | 00 : none |
| product | m : motor | ||
| displacement | 125 : 205.5 cm3/r [12.54 in3/r] | ||
| output shaft | 03 : 31.75 [1.250] dia. flat root side fit, 14 tooth, 12/24 dp 30 deg. involute spline, 38.1 [1.50] minimum full spline length with .375-16unc-2b thread | ||
| case flow options | 02 : .4375-20 unf-2b sae o-ring port with check valve | ||
| pressure/flow option | 00 : none | ||
| seal option | 0 : standard | ||
| special features (hardware) | 00 : none | ||
| paint/packaging | 00 : no paint, individual box | ||
| design code | f : sixth |
