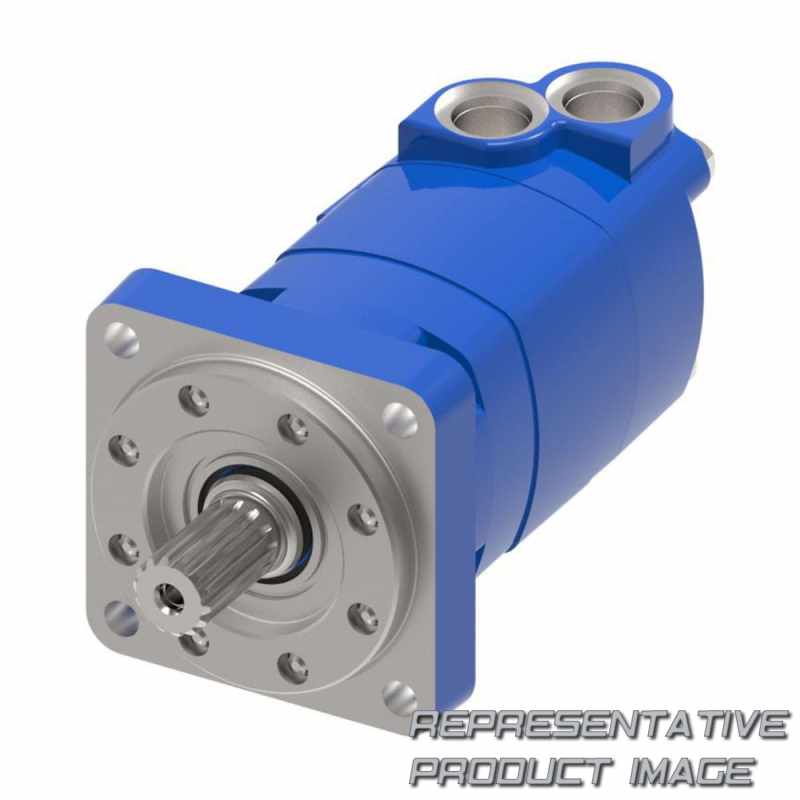

| motors | 4000 series; standard mount motor | ||
| Series | 04 : 4000 series | ||
| Mounting type | ae | ||
| ports | aa : .875-14 unf-2b sae o-ring ports - staggered ports | ||
| low pressure relief | 0 : none | ||
| geroler option | 0 : standard | ||
| accessories | 00 : none | ||
| special features (assembly) | 00 : none | ||
| customer identification | 00 : none |
| product | m : motor | ||
| displacement | 190 : 311.8 cm3/r [19.03 in3/r] | ||
| output shaft | 08 : 31.75 [1.250] dia. flat root side fit, 14 tooth, 12/24 dp 30 deg. involute spline 38.1 [1.50] minimum full spline length (available with mounting type (e) only) | ||
| case flow options | 01 : .5625-18 unf-2b sae o-ring port with shuttle | ||
| pressure/flow option | 00 : none | ||
| seal option | 0 : standard | ||
| special features (hardware) | 05 : non masked nameplate | ||
| paint/packaging | 00 : no paint, individual box | ||
| design code | f : sixth |
