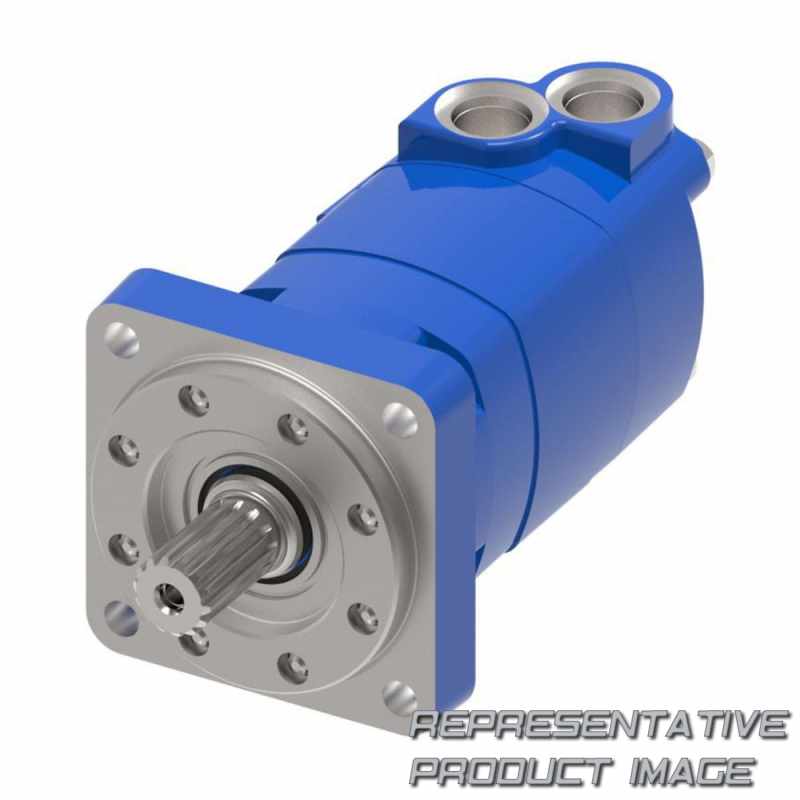

| motors | 4000 series; standard mount motor | ||
| Series | 04 : 4000 series | ||
| output shaft | 05 : 31.75 [1.250] dia. tapered with 1.000-20unef-2a thread 7.938 [.3125] sq. x 25.4 [1.00] straight key (available with mounting type (e) only) | ||
| case flow options | 01 : .5625-18 unf-2b sae o-ring port with shuttle | ||
| pressure/flow option | 00 : none | ||
| seal option | 0 : standard | ||
| special features (hardware) | 00 : none | ||
| paint/packaging | 00 : no paint, individual box | ||
| design code | f : sixth |
| product | m : motor | ||
| displacement | 190 : 311.8 cm3/r [19.03 in3/r] | ||
| ports | aa : .875-14 unf-2b sae o-ring ports - staggered ports | ||
| low pressure relief | 0 : none | ||
| geroler option | 0 : standard | ||
| accessories | 00 : none | ||
| special features (assembly) | 00 : none | ||
| customer identification | 00 : none | ||
| Mounting type | ae |
