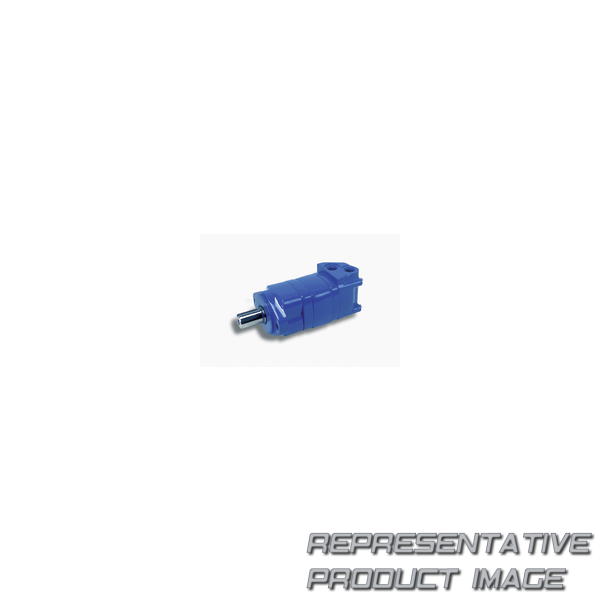

| motors | 2000 series; standard mount motor | ||
| Series | 02 : 2000 series | ||
| Mounting type | ah : standard, 4 bolt; 82.6 [3.25] pilot dia. 13.59 [.535] dia. holes on 106.4 [4.19] dia. bolt circle | ||
| ports | aa : .875-14 unf-2b sae o-ring ports - staggered ports | ||
| low pressure relief | 0 : none | ||
| geroler option | 1 : standard | ||
| accessories | 00 : none | ||
| special features (assembly) | 00 : none | ||
| customer identification | aa : none |
| product | m : motor | ||
| displacement | 049 : 80.6 cm3/r [ 4.92 in3/r] | ||
| output shaft | 16 : 32.00 [1.260] dia. straight shaft with m8 x 1.25-6h thread in end, 9.982 [.3930]w x 7.995 [.3132]h x 45.00 [1.772]l key | ||
| case flow option | 01 : .4375-20 unf-2b sae o-ring port | ||
| pressure flow option | 00 : none | ||
| seal option | 0 : standard | ||
| special features (hardware) | 00 : none | ||
| paint/packaging | ab : primer low gloss black, individual box | ||
| design code | f : sixth |
