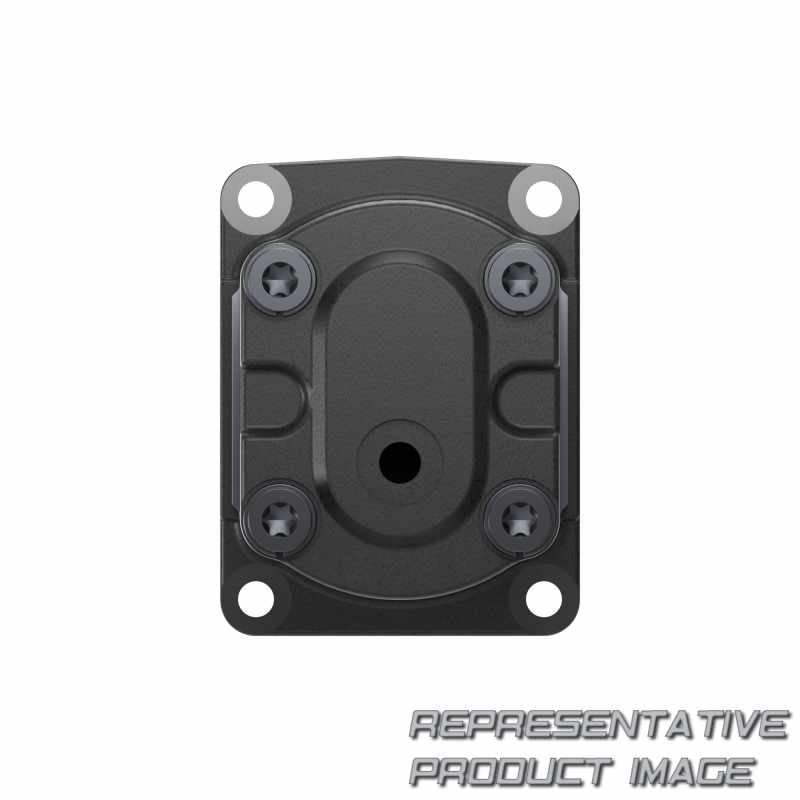

| Rear cover | Drain port (axial) | ||
| port connection | Rectangular flange for fitting ISO8434-1 | ||
| Series | Bearing diameter Ø 18mm | ||
| function | Motor | ||
| Noise level | Standard noise level | ||

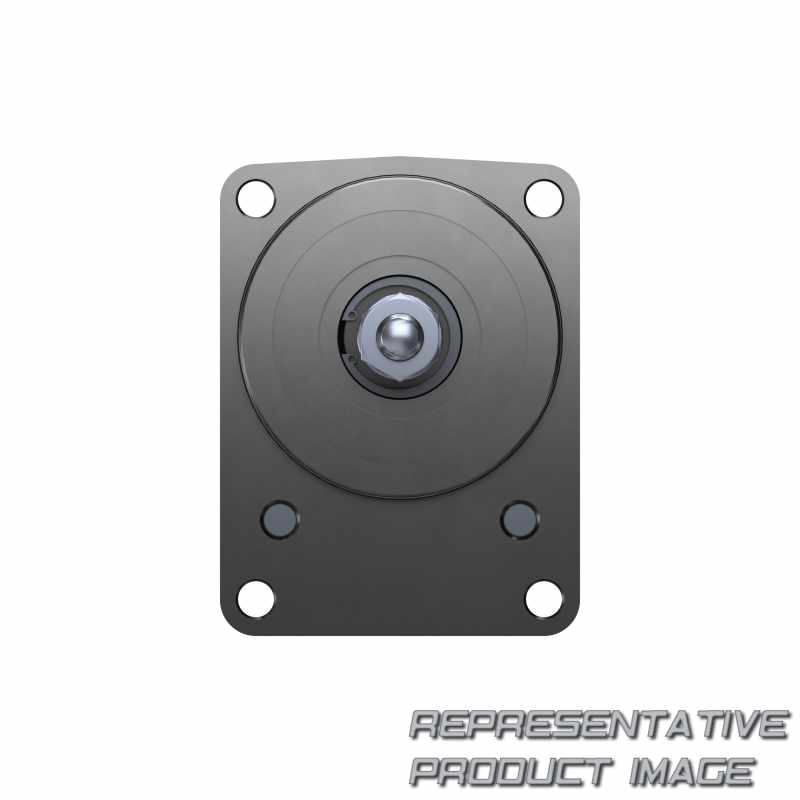

| Front cover | Rectangular flange Ø 80 mm | ||
| Drive shaft | Conical 1:5 | ||
| Maximum constant pressure | 210 bar |
| Sealing Material | FKM | ||
| Version | Phosphated, pinned | ||
| model | Model F (5.5 ... 22.5 cm³/rev) | ||

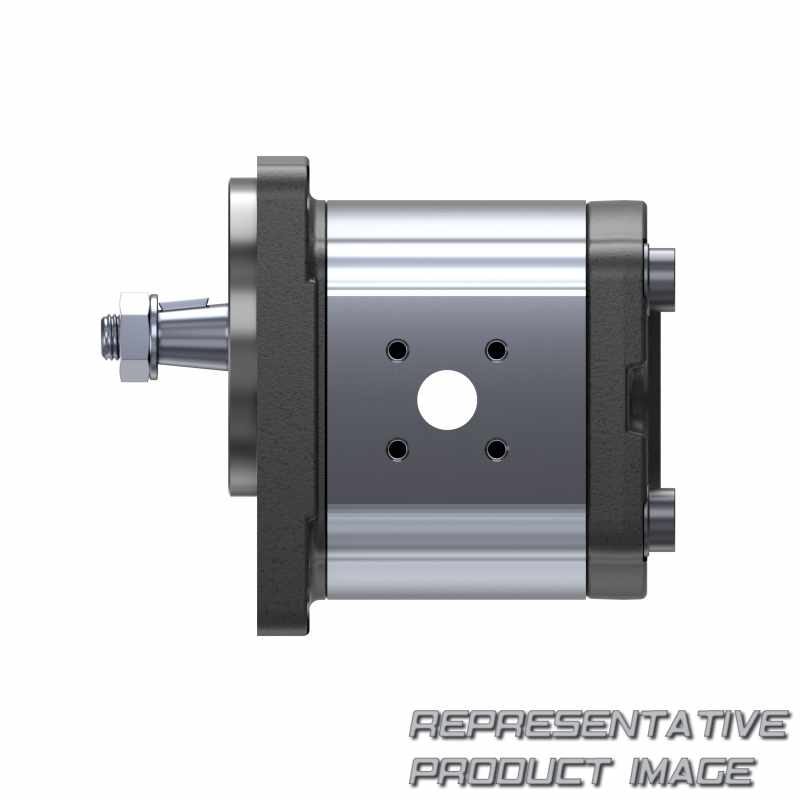

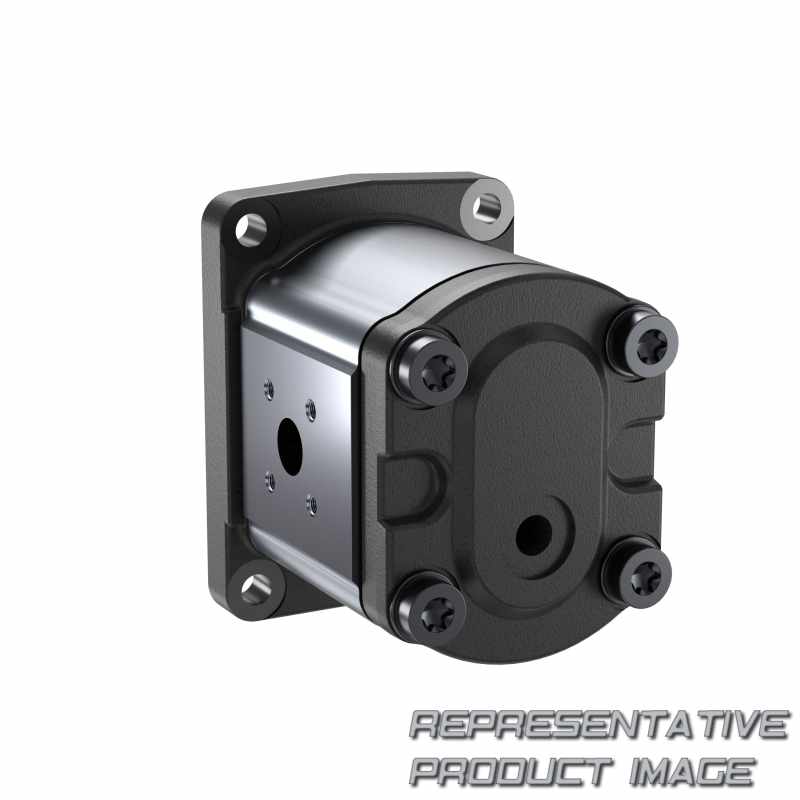

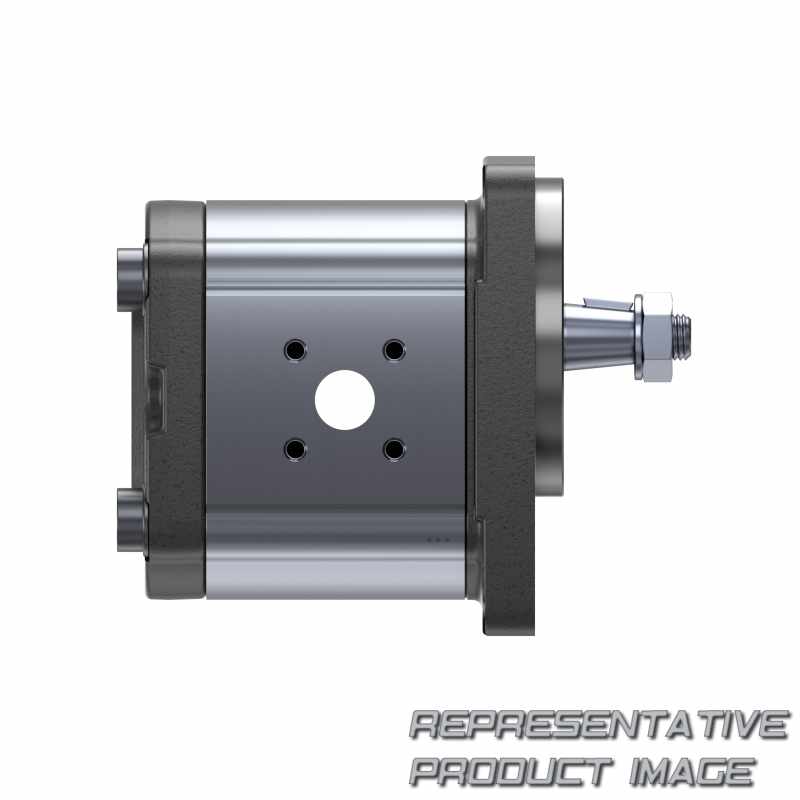

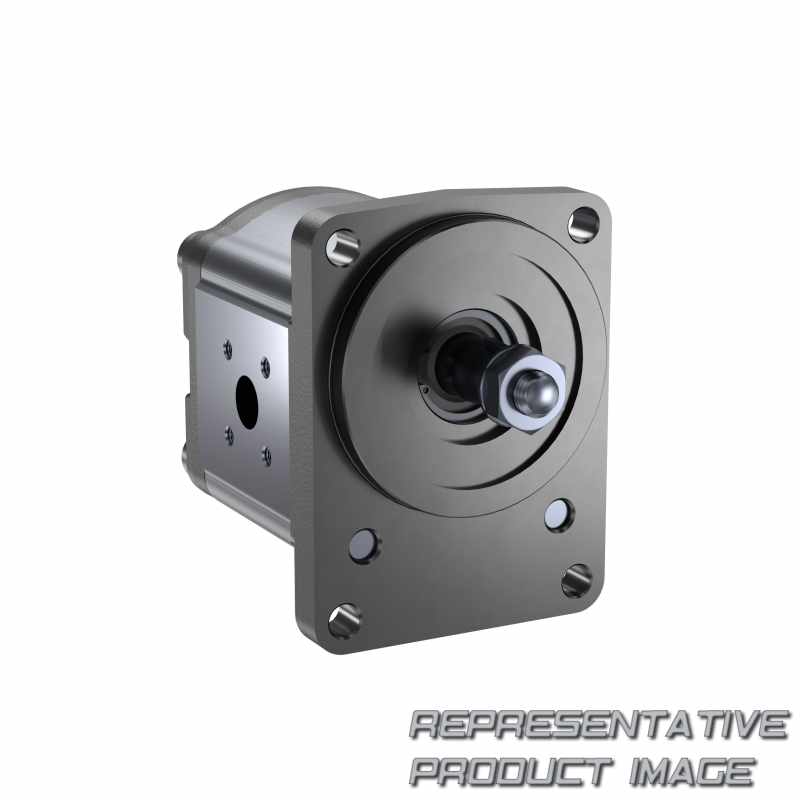

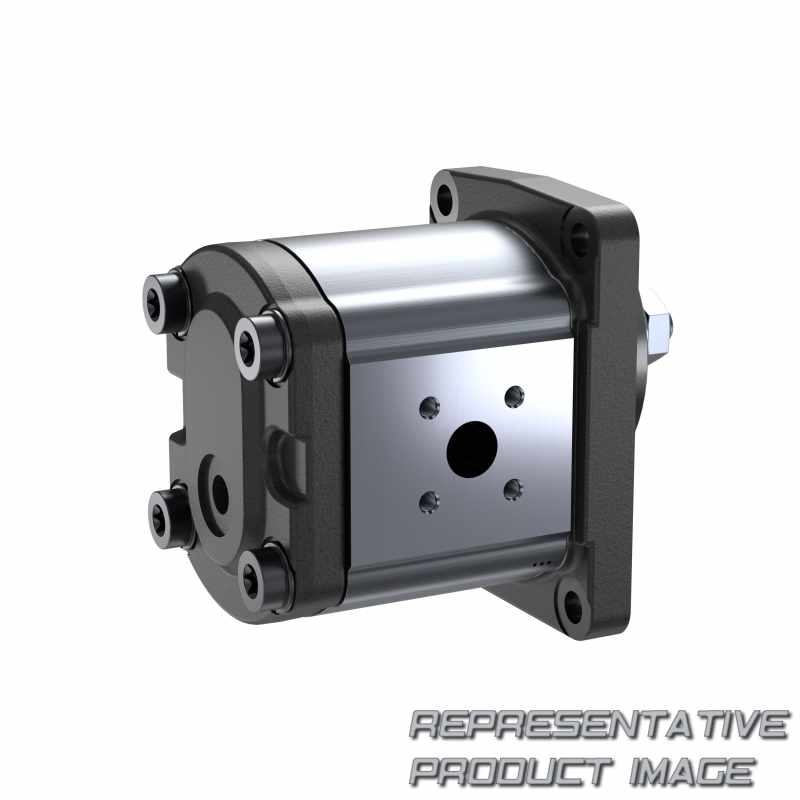

| product | External gear unit | ||
| Housing Material | Aluminum | ||
| Direction of rotation | Universal | ||
| Maximum rotational speed | 3000 rpm | ||
| Nominal size | 16 cm³/rev |
