| Non-standard version | Deviations from catalogue standards, see drawing | ||
| Sealing Material | NBR, WDR in FKM | ||
| port connection | Square flange DIN 3901/3902 | ||
| Series | Bearing diameter Ø 18mm | ||
| model | Model F (4 ... 28 cm³/rev) | ||

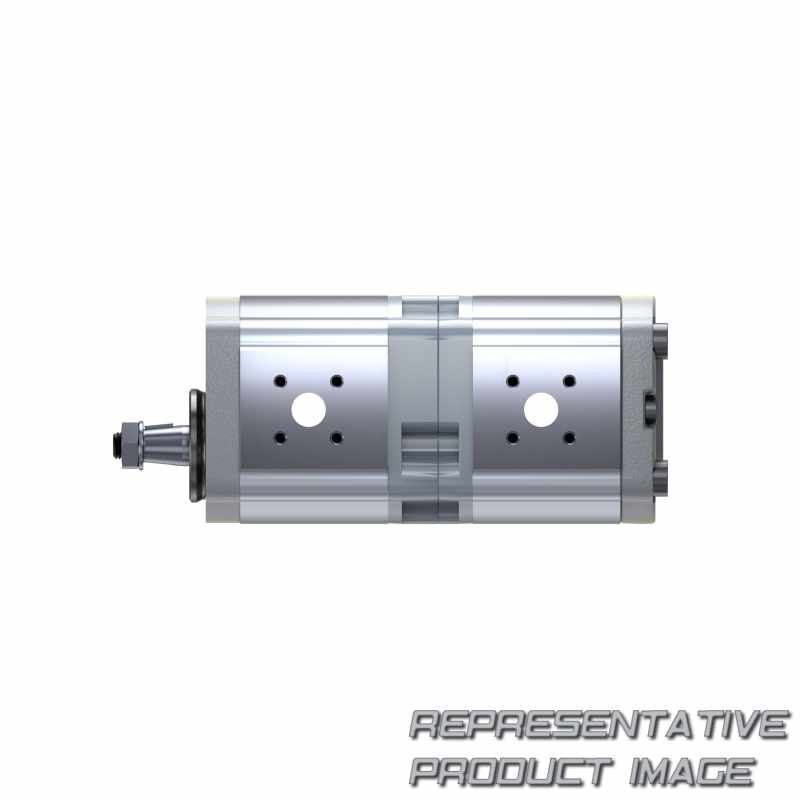

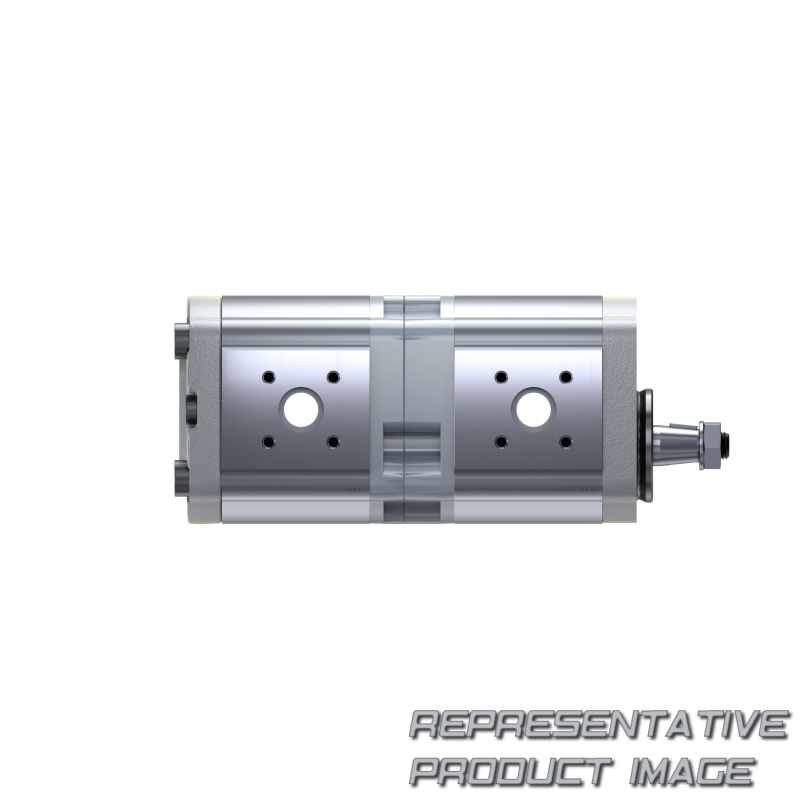

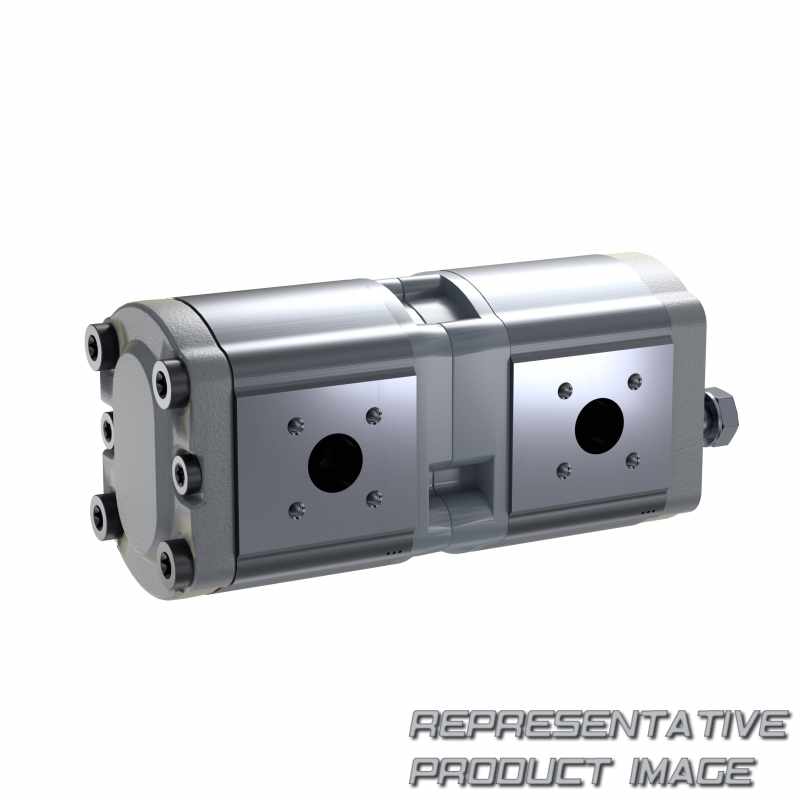

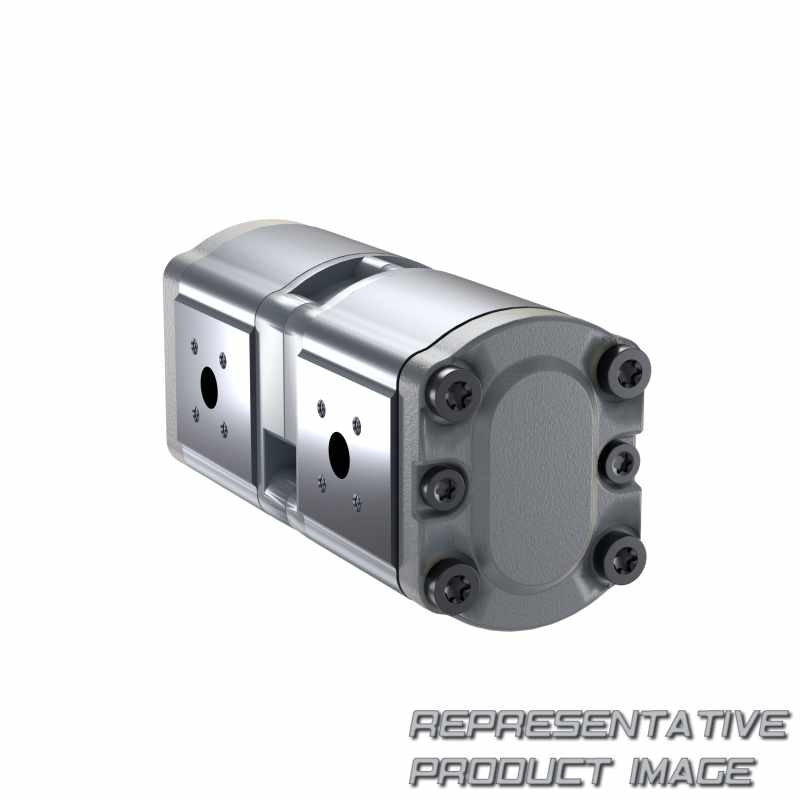

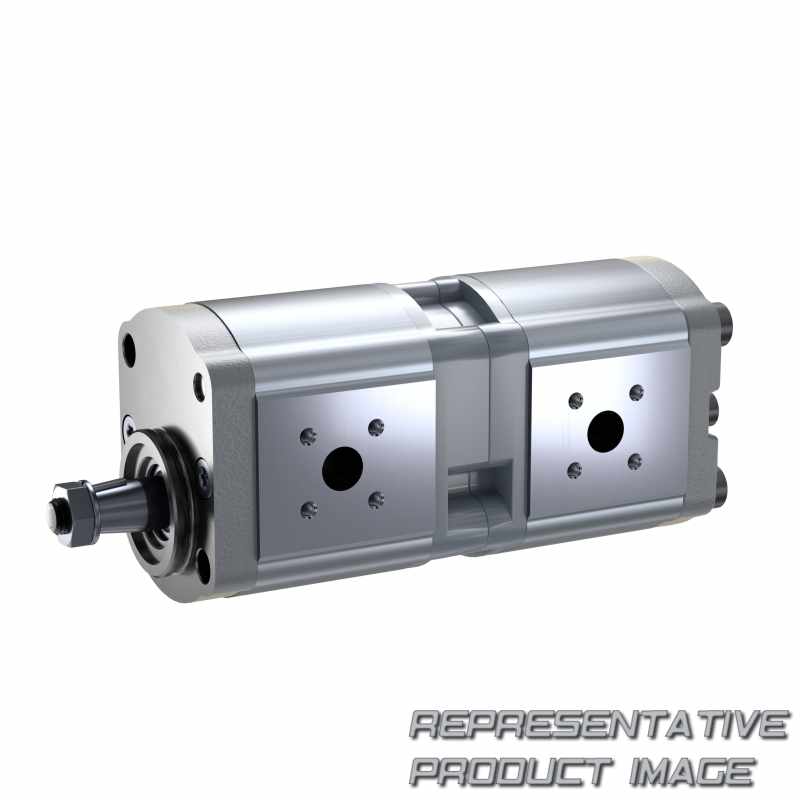

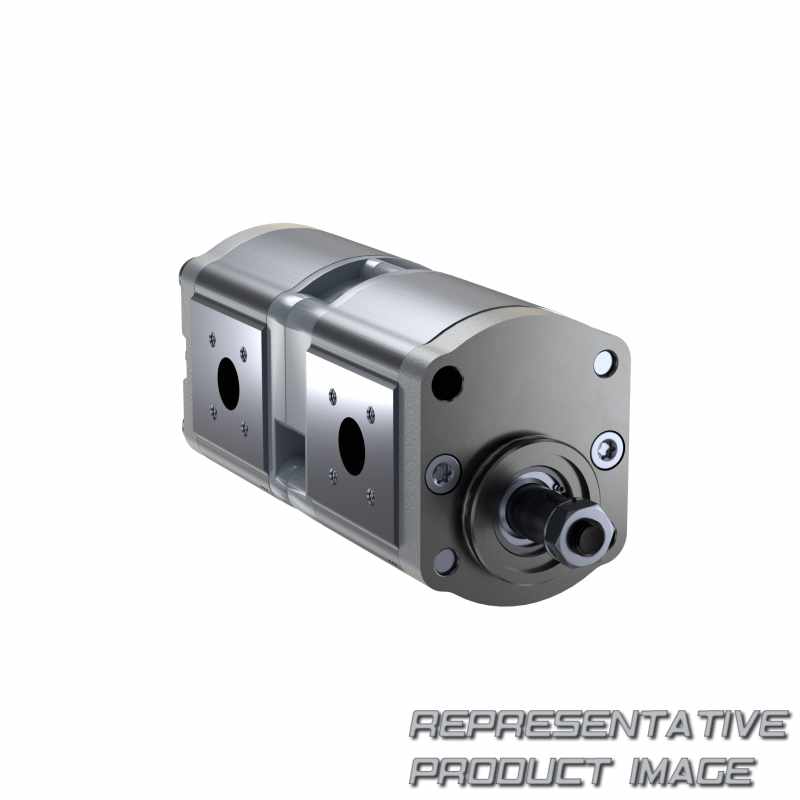

| product | External gear unit | ||
| Housing Material | Aluminum | ||
| Direction of rotation | anti clockwise rotation | ||
| Maximum rotational speed | 3000 rpm | ||
| Max. intermittent pressure pump unit 1 | 280 bar | ||
| Nominal size | 16 cm³/rev |

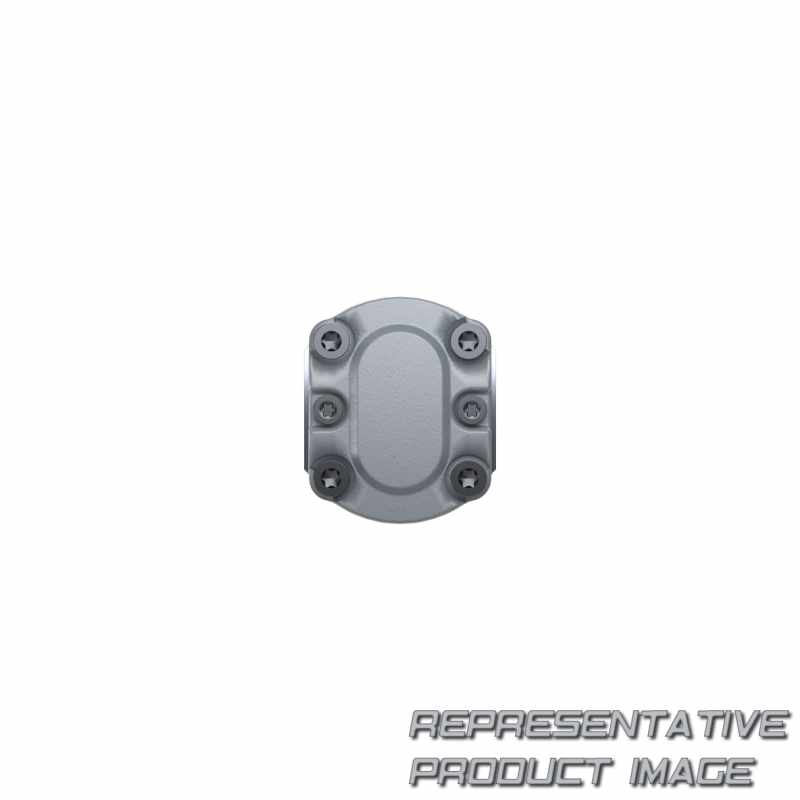

| Rear cover | Flow control valve residual flow, int. | ||
| Port connection pump unit 2 | Square flange DIN 3901/3902 | ||
| Version | corrosion-resistant, pinned | ||
| Model pump unit 2 | Model F (4 ... 28 cm³/rev) | ||
| function | Pump | ||
| Noise level | Standard noise level | ||

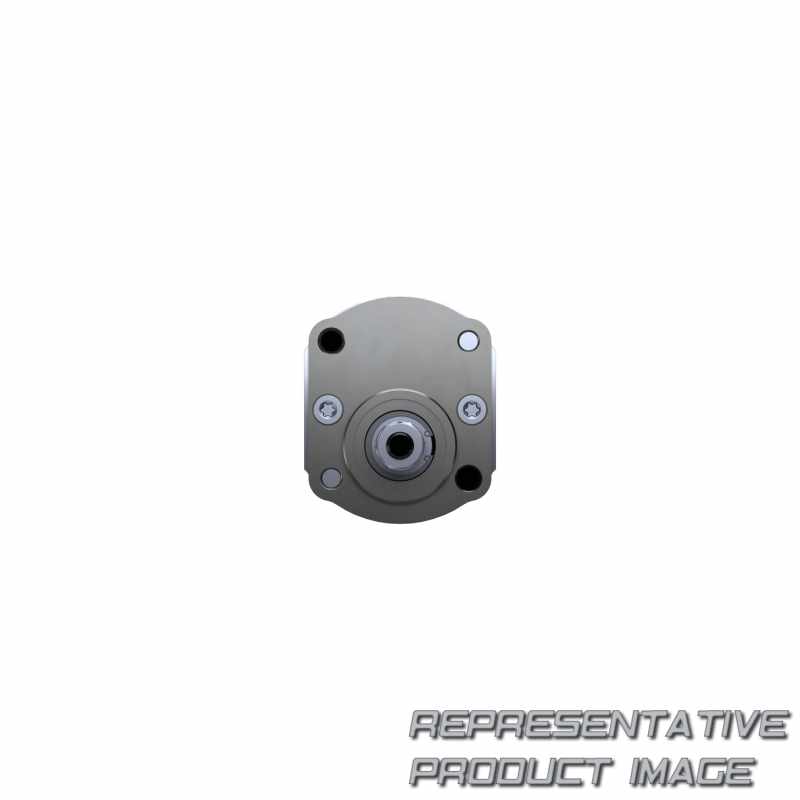

| Front cover | 2-hole mounting Ø 50 mm (K H D) | ||
| Drive shaft | Conical 1:5 | ||
| Max. intermittent pressure pump unit 2 | 280 bar | ||
| Size pump unit 2 | 11 cm³/rev | ||
| Max. flow PU2 | 33.0 l/min |
