| control type | -cm7 : low range pressure compensator 70 bar | ||
| Series | pvq : inline piston pump, variable volume, quiet series | ||
| input shaft rotation | r : right-hand rotation (cw) | ||
| ports - type and location | -ss : inch o-ring boss, 1.3125" inlet and outlet, side port | ||
| pump design number | -21 : 221 | ||
| control design | -12 : o-ring seal design | ||
| Mounting flange | -mb |

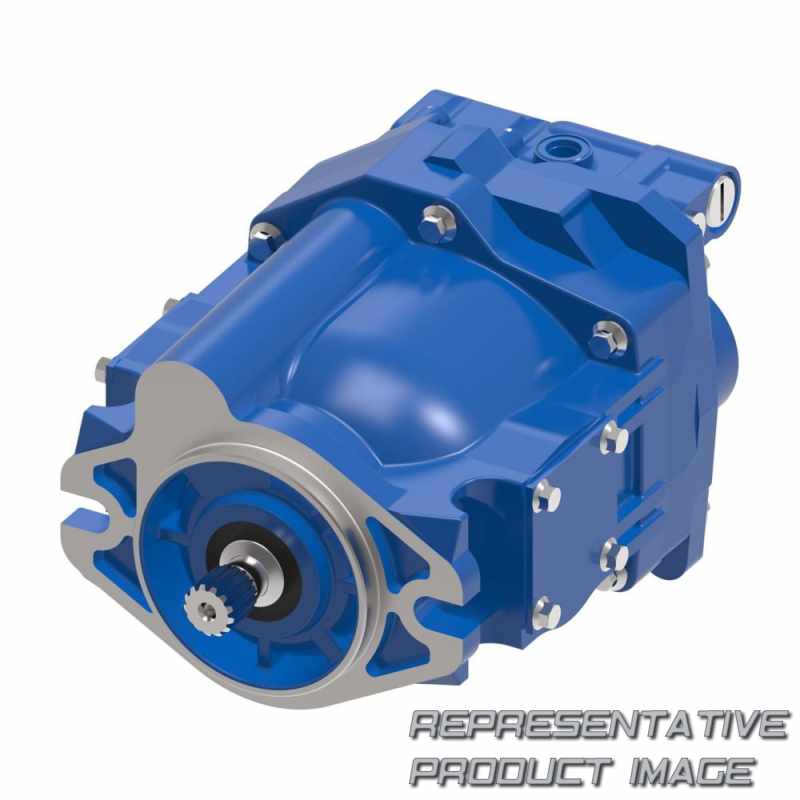

| pumps | pvq32-mbr-ssns-21-cm7-12 | ||
| displacement | 32 : 32.9 cc/rev (2.01 cir), 140 bar (2000 psi) | ||
| thru-drive without coupling | no thru-drive | ||
| Seals | s : buna n, standard | ||
| control options | without adjustable maximum displacement stop (standard) | ||
| special features | none | ||
| shafts - input | n |
