| screw-in cartridge valves | rv5-10-i-0-50/50 | ||
| size and flow | -10 : 114 l/min (30 gpm) | ||
| Adjustment | -i : internal | ||
| valve housing port | -0 : none | ||
| pressure setting | 50 : maximum pressure setting |

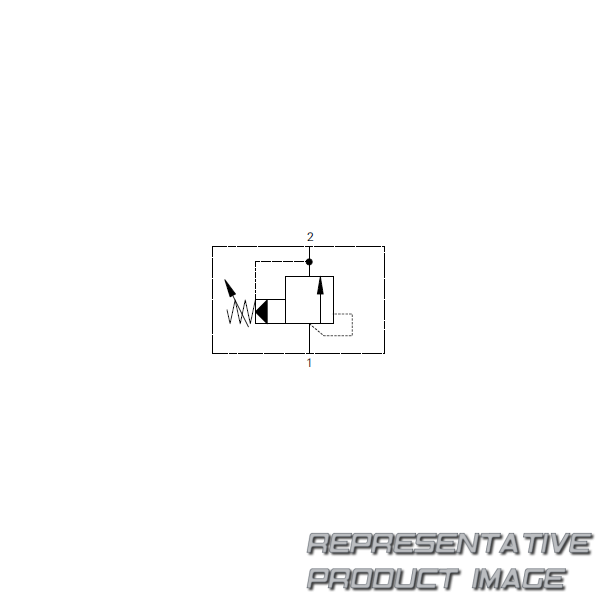

| pressure control | rv5 : relief valve, pilot operated high pressure | ||
| Seal Type | buna-n | ||
| valve housing material | aluminum | ||
| pressure range | -50/ : 38-350 bar (550-5000 lbf/in2) | ||
| special feature | none |
