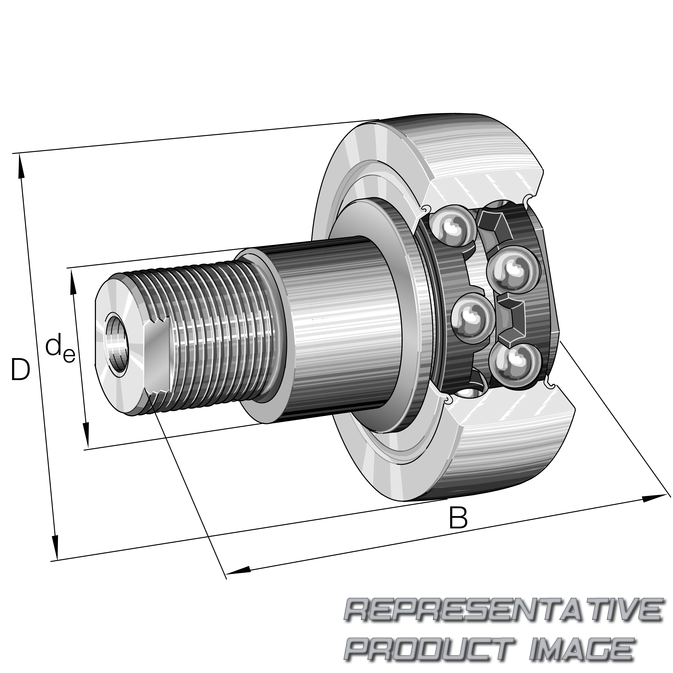

INA ZLE5202-2Z

0009650810000

£287.87 ~~£345.26~~ -16%

47 pcs. with 1 to 3 days delivery to United States

Specifications

Width	66.50mm
Inner Diameter	M14

Outer Diameter	40mm
Weight	230g

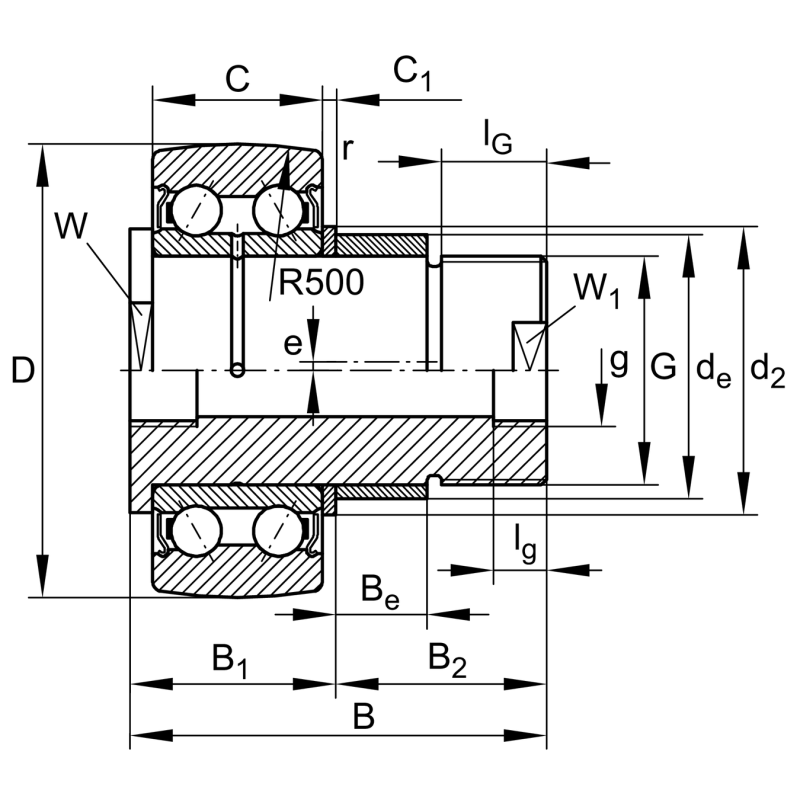

Outside diameter	D	40	mm
Width	B	66.50	mm
Basic static load rating, radial	C_0r	7,000
Speed on permanent grease lubrication	n_{D G}	10,200

Diameter of eccentric	d_e	22	mm
Basic dynamic load rating, radial	C_r	9,800
Fatigue load limit, radial	C_ur	355	N
Permissible dynamic load outer ring, radial	F_{r per}	7,000

Maximum witdh of thrust washer	B₁	21.50	mm
Width, outer ring	C	15.90	mm
Stop diameter of thrust washer	d₂	27	mm
Width of flats	W	10	mm
Width, eccentric	B_e	16	mm
Thread length (inner)	l_g	8	mm
Minimum thread length	I_{G min}	25	mm

Bolt/stud length effectively	B₂	45	mm
Protrusion outer ring to thrust washer	C₁	2.50	mm
Minimum chamfer dimension	r_min	0.60	mm
Eccentricity	e	1	mm
Thread inside	g	M8X1
Thread		M14
Radius of outer ring outside profile	R	500	mm
