| Bore diameter | d | 6 | mm |
| Bore diameter lower tolerance | 0 | mm | |
| Outside diameter lower tolerance | -0.01 | mm | |
| Width lower tolerance | -0.25 | mm | |
| Basic static load rating, axial | C0a | 5,700 | |
| Limiting speed for grease lubrication | nG Grease | 14,000 | |
| Bearing frictional torque | MR | 0.01 | Nm |
| Bore diameter upper tolerance | 0 | mm | |
| Outside diameter | D | 19 | mm |
| Width | B | 12 | mm |
| Basic dynamic load rating, axial | Ca | 5,000 | |
| Fatigue load limit, axial | Cua | 345 | N |
| Thermally safe operating speed | nϑ | 14,000 |

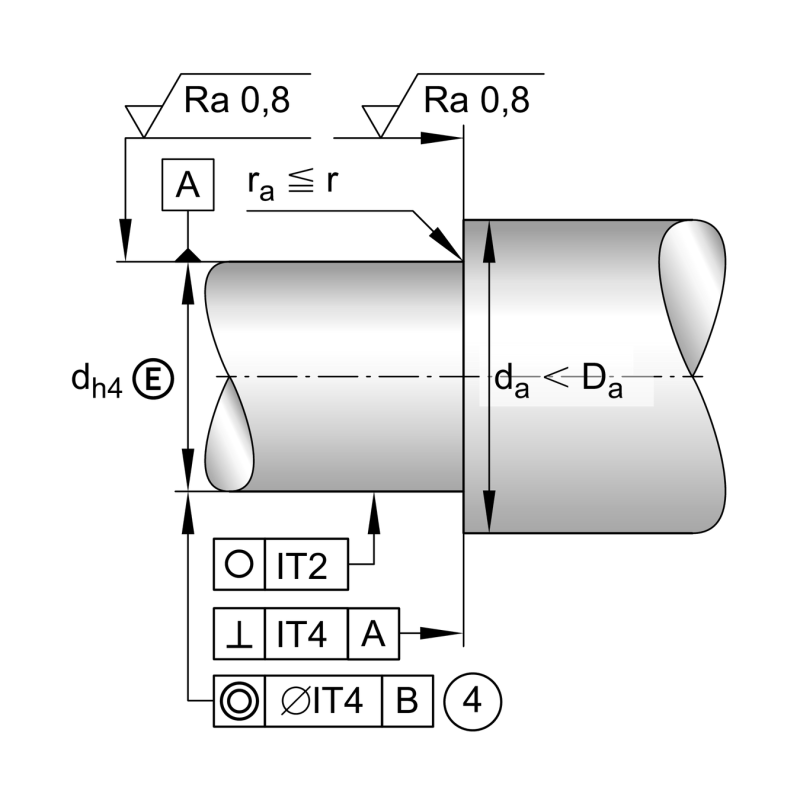

| Minimum diameter shaft | da min | 9 | mm |
| Rib diameter inner ring | d1 | 12 | mm |

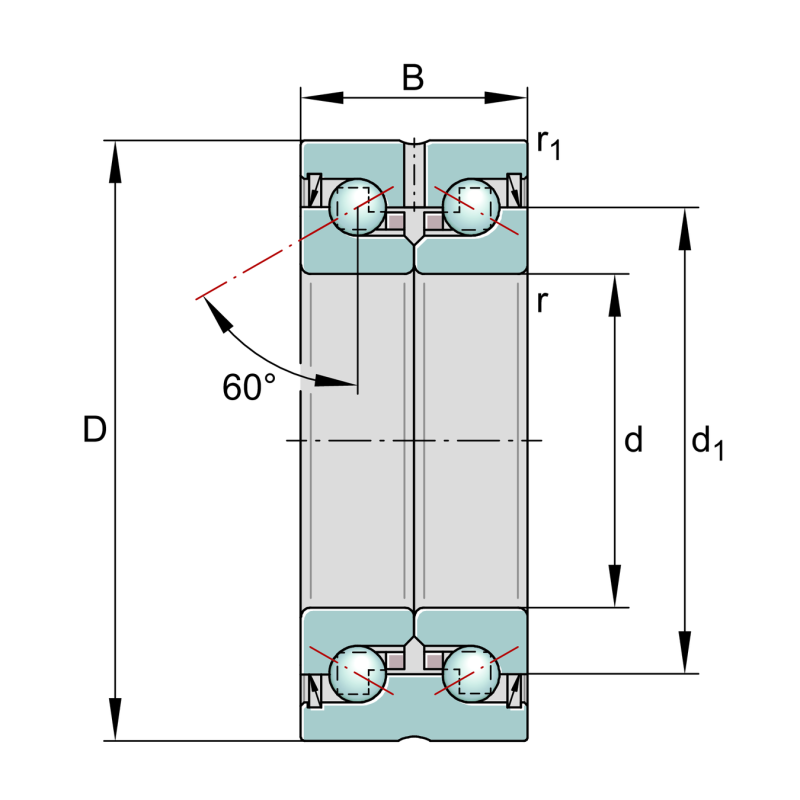

| Contact angle | α | 60 | ° |
| Minimum chamfer dimension | rmin | 0.30 | mm |
