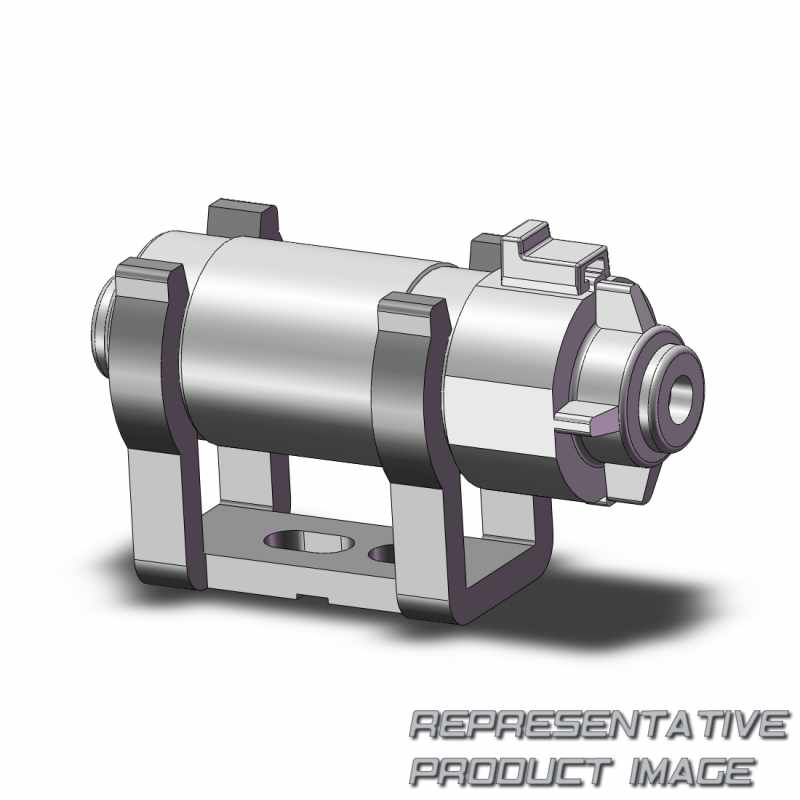

SMC ZFC53-B

Name: ZFC53-B SMC
Brand: SMC
SKU: 745857-en-gbp
Price: 12.15 GBP
Availability: InStock

£12.15 ~~£16.58~~ -26%

1 pcs. with 1 to 3 days delivery to United States

Specifications

Width	19mm

Weight	11g

model		zfc5
port size(applicable tubing o.d.) - inch size		?5/32andquot;
Operating pressure		100 kpa to 1.0 mpa
flow rate l/min		10
operating and ambient temperature range c		0 to 60
element replacement differential pressure mpa		0.1 (vacuum pressure 20 kpa)
applicable tubing material		nylon, soft nylon, polyurethane
internal capacity cm3		4.50
total width mm		19
case material		polycarbonate

port size(applicable tubing o.d.) - metric size		?4
fluid		air, nitrogen
flow rate l/min note)		45
proof pressure mpa		1.50
filtration ?m		5 (filtration efficiency 95%)
filtration area mm2		750
weight g		10.50
total length mm		53.90
bracket total length mm		23
Weight		.02314 lb
