INA ZARF1560-LTV

0000404950000

£483.33 Limited stock only available on quotation

Specifications

Width	53mm
Inner Diameter	15mm

Outer Diameter	60mm
Weight	405.60g

Bore diameter	d	15	mm
Height	T	53	mm
Basic static load rating, axial	C_0a	53,000
Basic static load rating, radial	C_0r	17,500
Fatigue load limit, radial	C_ur	2,650
Limiting speed for grease lubrication	n_{G Grease}	2,200

Outside diameter	D	60	mm
Basic dynamic load rating, axial	C_a	24,900
Basic dynamic load rating, radial	C_r	13,000
Fatigue load limit, axial	C_ua	7,500
Limiting speed for oil lubrication	n_{G Oil}	8,500
Bearing friction torque	M_RL	0.26	Nm

Maximum diameter of housing shoulder	D_{a max}	36	mm

Minimum diameter shaft shoulder	d_{a min}	22	mm

Height outer ring over wave washer	H₁	39	mm
Distance to lubrication hole	C_a	8	mm
Heeldiameter wave washer long	D₂	24	mm
Width, wave washer	B	7.50	mm
Width heel wave washer long	B₂	11	mm
Minimum chamfer dimension 1	r_{1 min}	0.60	mm

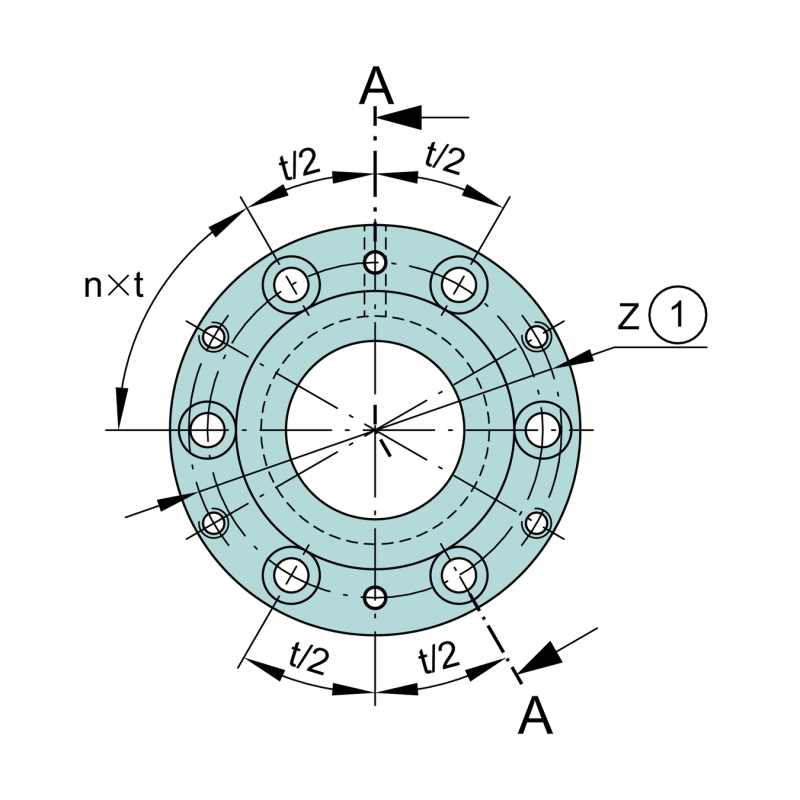

Pitch circle diameter (holes)	J	46	mm
Split	n x t	60	°

Width, outer ring	C	14	mm
Rip diameter shaft washer	d₁	35	mm
Outside diameter wave washer long	D₃	34	mm
Width wave washer long	B₁	20.50	mm
Minimum chamfer dimension	r_min	0.30	mm
Diameter lubrication hole	d_s	3.20	mm
Number (screwing holes)	n	6
