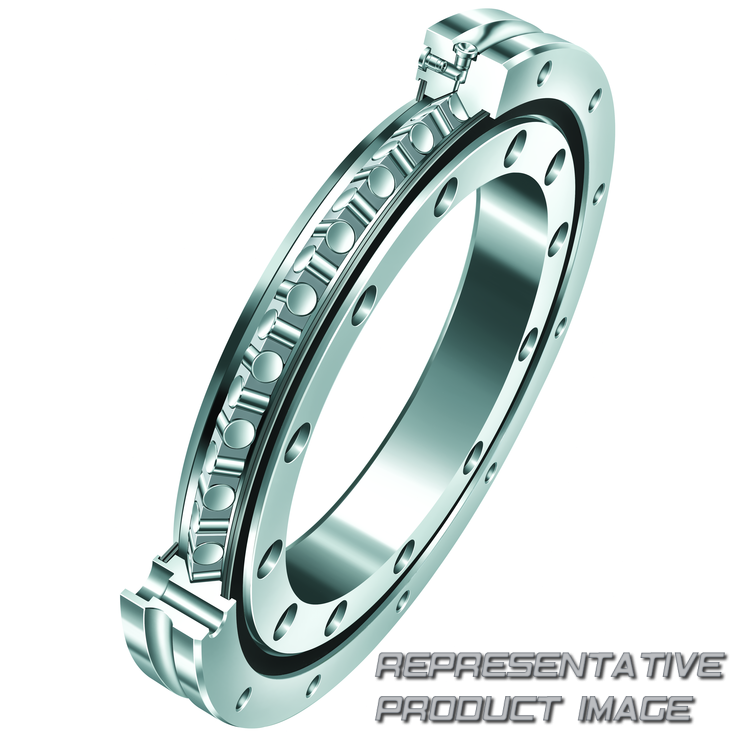

INA XSU080188

0052348400000

£2,108.88 ~~£2,547.17~~ -17%

11 pcs. with 1 to 3 days delivery to United States

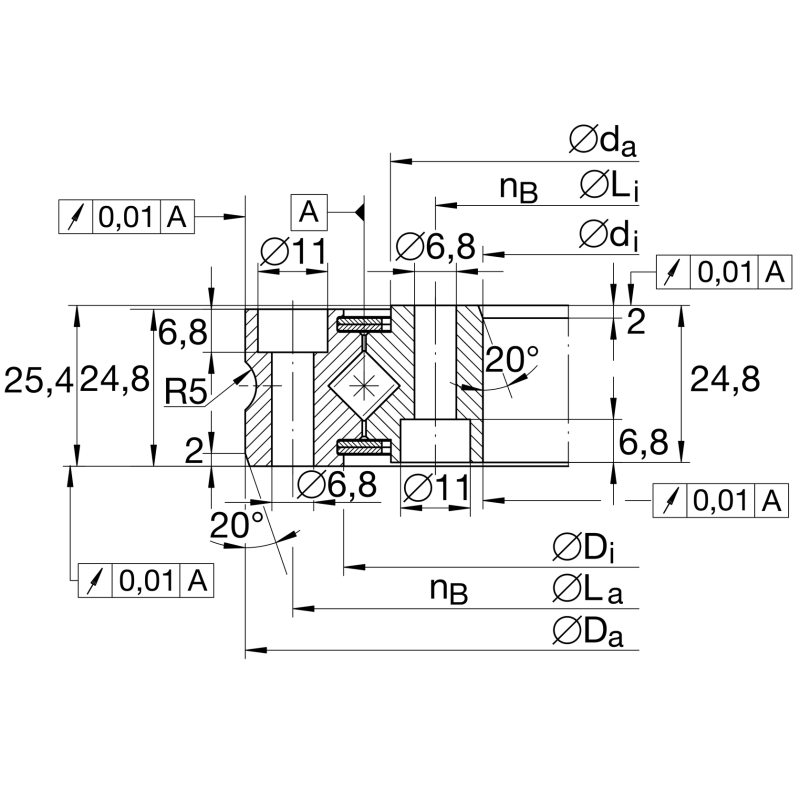

Specifications

Width	25.40mm
Inner Diameter	150mm

Outer Diameter	225mm
Weight	3.55Kg

Bore diameter upper tolerance		0.03	mm
Outside diameter lower tolerance		-0.03	mm

height outer ring	h_a	24.80	mm
Number of fixing holes in outer ring	n_a	16
height of inner ring	h_i	24.80	mm
Counterbore diameter of fixing holes	d_S	11	mm
Pitchcircle diameter fixing holes inner ring	L_i	165	mm
Groove radius	R	5	mm

Pitchcircle diameter fixing holes outer ring	L_a	210	mm
Outside diameter inner ring	d_a	179	mm
Fixing bore	d_B	6.80	mm
Counterbore depth of fixing holes	t_S	6.80	mm
Number of fixing holes in inner ring	n_i	16
Running accuracy A (related to the raceway)		0.01	mm
