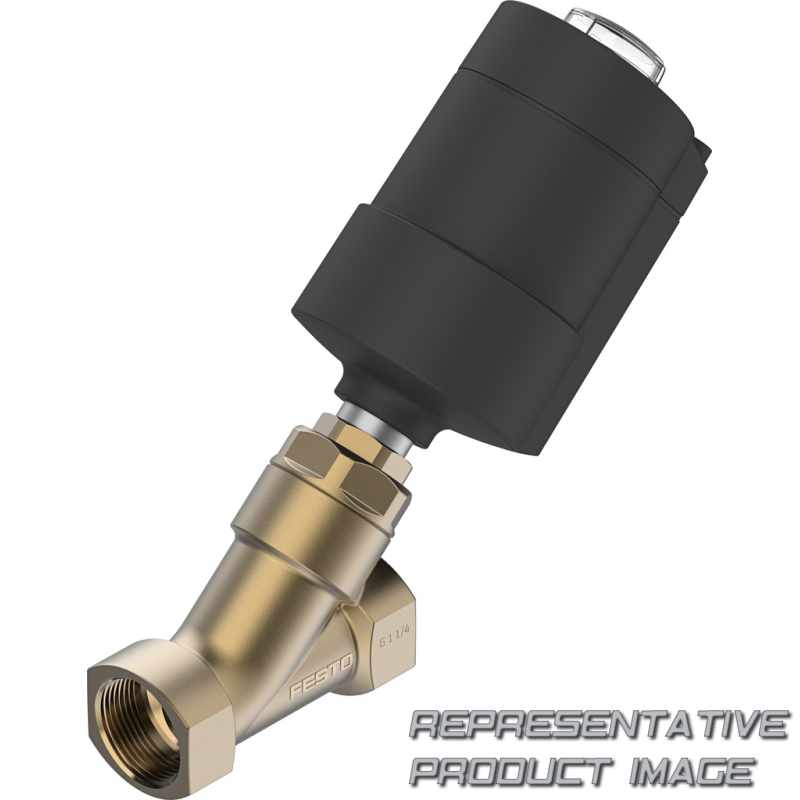

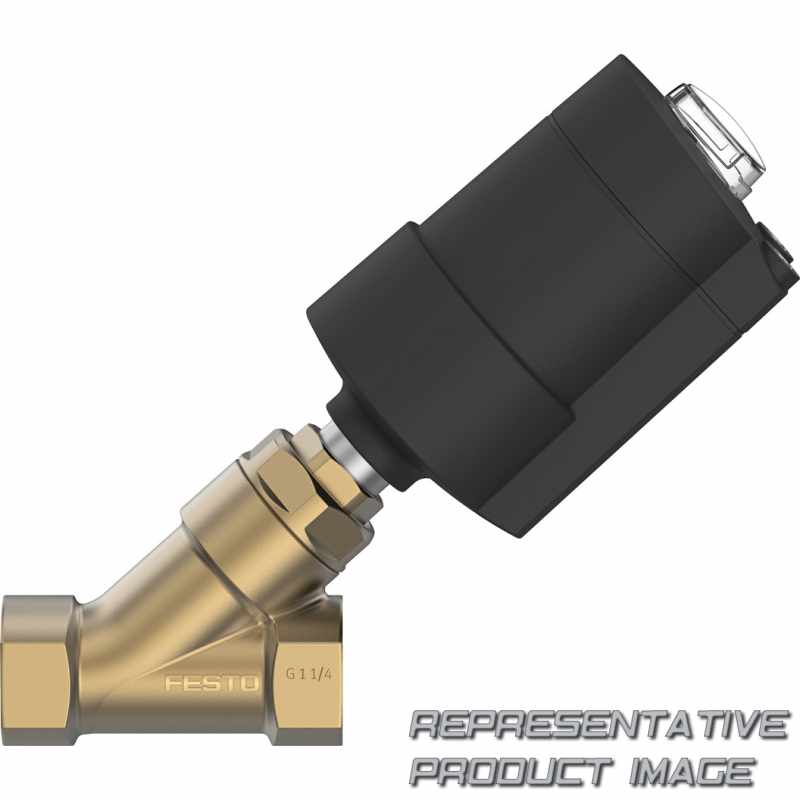

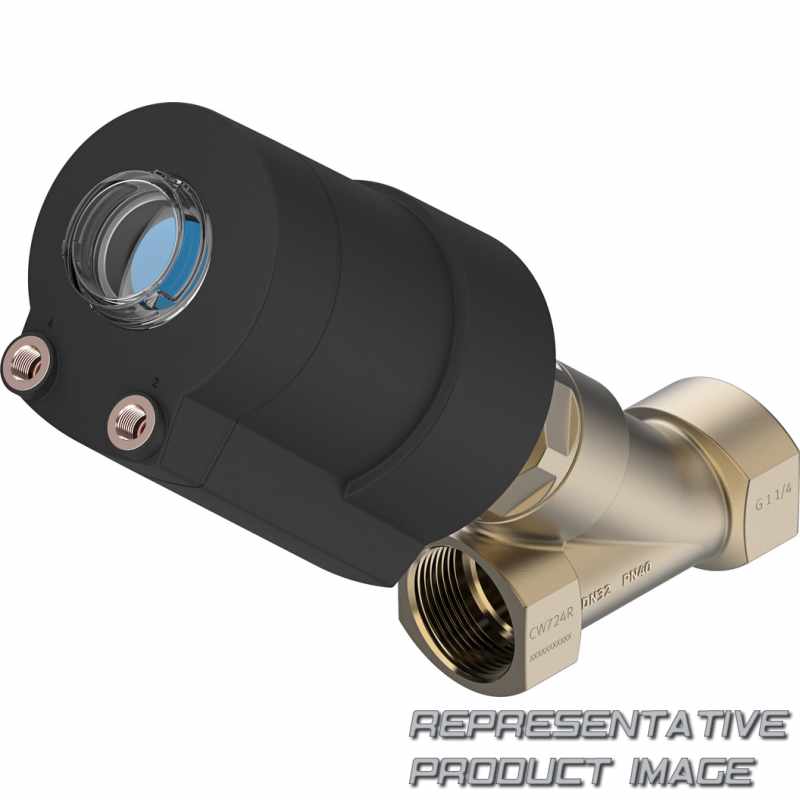

FESTO 8111595 angle seat valve

Name: 8111595 FESTO
Brand: FESTO
SKU: 699888-en-gbp
Price: 353.13 GBP
Availability: SoldOut

VZXA-B-TS6-32-M2-B1T-13.5-K-75-20-PM

£353.13 ~~£570.08~~ -38%

Limited stock only available on quotation

Specifications

Series (VZXA)	Process valve
Flow direction (B)	Below valve seat, for gaseous and liquid media
Line connection (T)	Threaded collar
Connection standard (S6)	G thread to DIN ISO 228
Connection size (32)	DN32
Temperature of medium (M2)	-10 ... +180°C
Valve housing material (B1)	Brass
Seat seal material (T)	PTFE

Material cover		PA-reinforced
Degree of protection		IP65 IP67
Material drive housing		PA-reinforced
Control function		Closed via spring force, N/C
Size of drive		75 mm
Product weight		3.128 g
Material spindle seal		PTFE
Material number process valve housing		CW724R
Note on materials		Contains paint-wetting impairment substances RoHS-compliant
Flow rate Kv		24,4 m³/h
Media temperature		-10 °C ... 180 °C
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Direction of flow		Below valve seat, for gaseous and liquid media
Symbol		00995586
Pneumatic connection		Female thread G1/8
Type of reset		Mechanical spring
Flow direction		Non-reversible
Line connection		Threaded coupling G1 1/4 to DIN ISO 228
Mounting position		optional
Design		Poppet valve with piston drive

Material piston rod		High-alloy stainless steel
Storage temperature		-10 °C ... 60 °C
Position detection		Via mechanical indicator
Stroke		20 mm
CE mark (see declaration of conformity)		In accordance with EU Pressure Equipment Directive
Material seat seal		PTFE
Material seals		FPM
Material process valve housing		Brass
Outdoor applications		Weather-protected application areas Class C1 based on IEC 60654-1
Ambient temperature		0 °C ... 60 °C
Max. viscosity		600 mm²/s
Control of medium		On/off operation
Medium		Vapour Mineral oil-based hydraulic fluid Inert gases Mineral oil Water Filtered compressed air, grade of filtration 200 µm Neutral fluids
Operating pressure		72,5 psi ... 101,5 psi
Type of piloting		Externally controlled
Medium pressure		0 bar ... 13,5 bar
Valve function		2/2
Type of mounting		In-line installation
Type of actuation		Pneumatic
