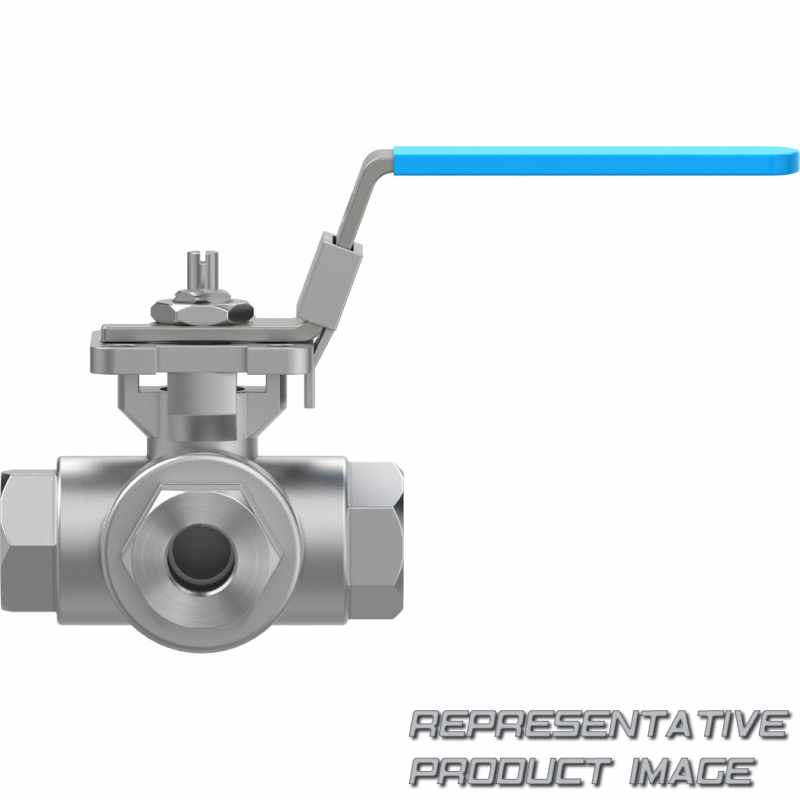

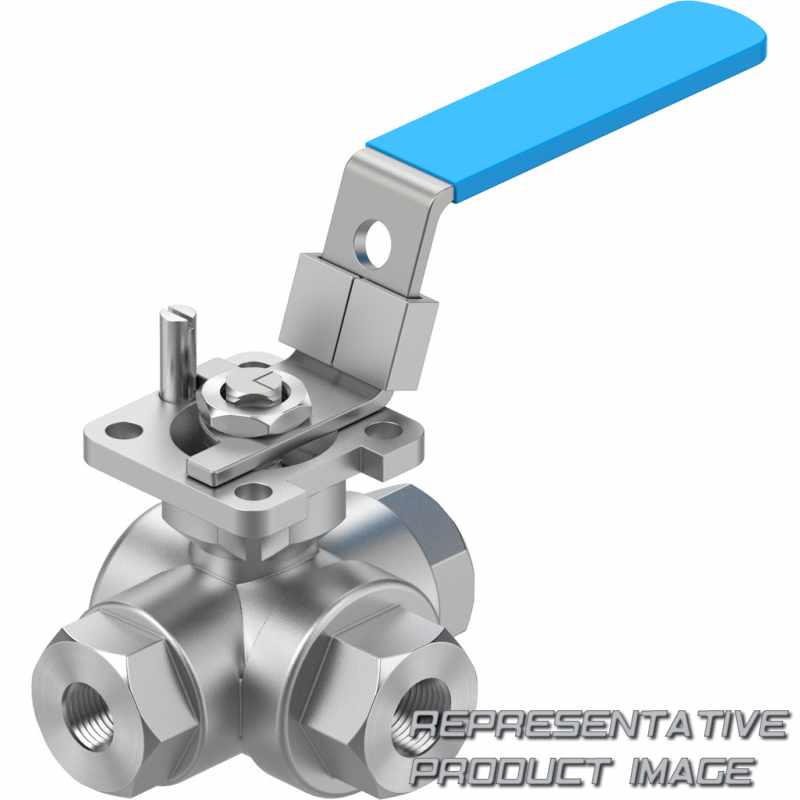

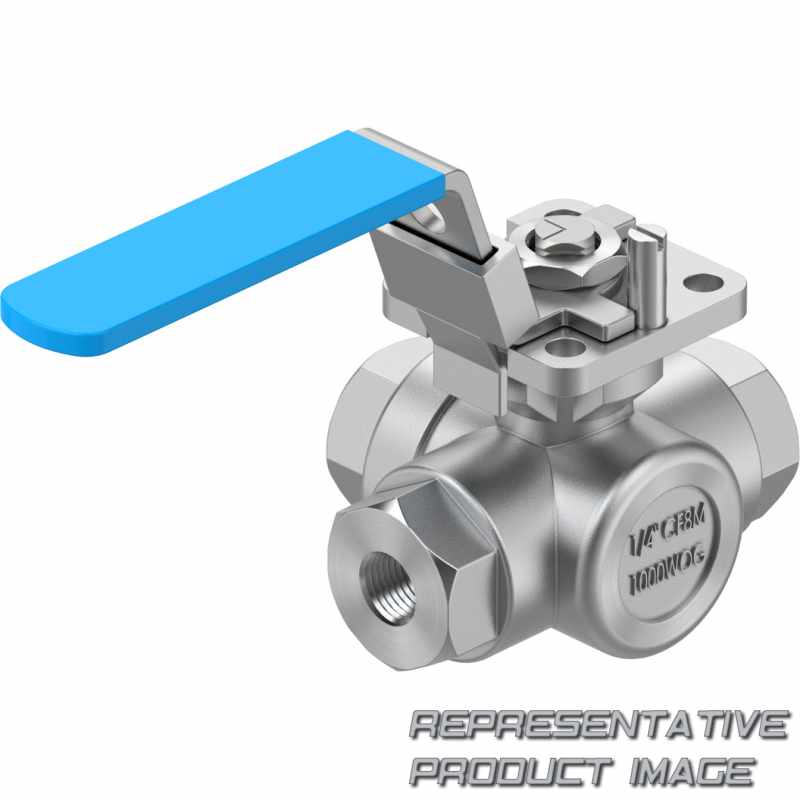

FESTO 8096943 ball valve

Name: 8096943 FESTO
Brand: FESTO
SKU: 661131-en-gbp
Price: 150.44 GBP
Availability: SoldOut

VZBE-1/4-T-63-F-3L-F04-M-V15V15

£150.44

Limited stock only available on quotation

Specifications

Corrosion resistance class CRC		4 - Very high corrosion stress
Approval		CRN
Material number shaft		1.44
Material number ball		1.44
Material seals		PTFE
Material number housing		1.44
Note on materials		Contains paint-wetting impairment substances RoHS-compliant
Media temperature		-20 °C ... 200 °C
Symbol		00991888
Breakaway torque at differential pressure, nominal pressure, process valve PN		9,6 Nm
Flow direction		Reversible
Nominal size DN		8
Flange hole pattern		F04
Connection Process valve		1/4 NPT
Mounting position		optional
Type of actuation		Mechanical

Explosion protection		Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
Product weight		800 g
Material shaft		High-alloy stainless steel
Material ball		Stainless steel casting
Material seat seal		PTFE
Material housing		Stainless steel casting
Flow rate Kv L hole		1,2 m³/h
Medium		Vapour Compressed air to ISO 8573-1:2010 [-:-:-] Inert gases Water Neutral fluids
Based on standard		ASME B1.20.1 ISO 5211
Nominal pressure PN		63
Valve function		3/2
Inside diameter		11 mm
Switching position indicator		Slot direction = flow direction
Type of mounting		In-line installation
Sealing principle		Soft
Design		3-way ball valve L-hole
