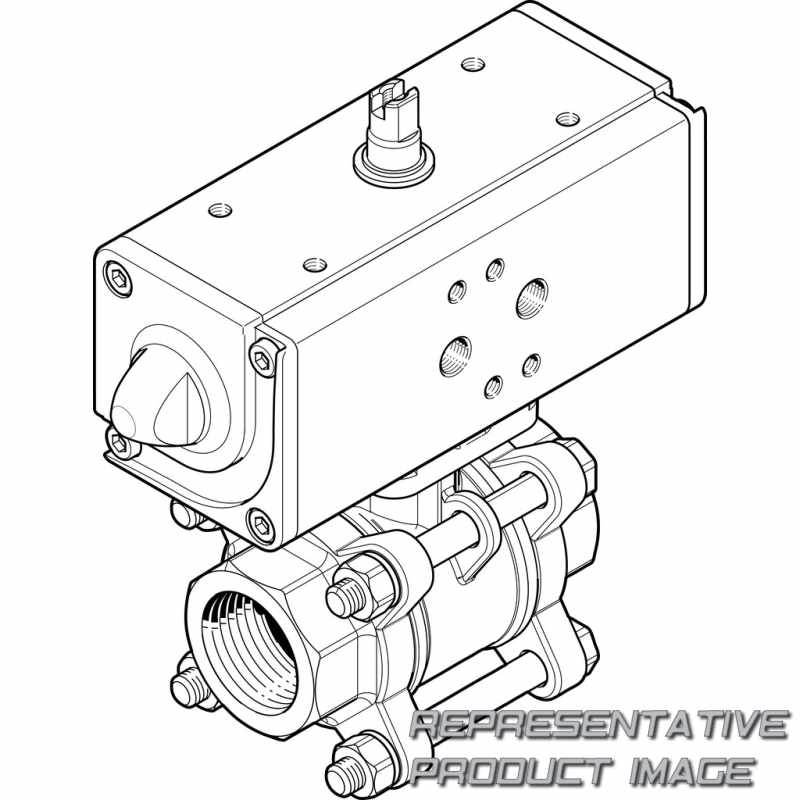

FESTO 1809658 ball valve actuator unit
VZBA-2"-GG-63-T-22-F0507-V4V4T-PP60-R-90-C
£703.85
2 pcs.
with 1 to 3 days delivery to United States
Specifications
| Series (VZBA) | Ball valve |
|---|---|
| Nominal diameter DN (2\") | 2\" |
| Process valve connection type 1 (G) | Rp female thread |
| Process valve connection type 2 (G) | G female thread |
| Process valve connection type 3 | None |
| Nominal pressure [bar] (63) | 63 |
| Design type (T) | Three-part |
| Valve function (22) | 2/2-way |
| Flanged connection (F0507) | Hole pattern 05 and 07 |
| Housing material (V4) | Stainless steel |
|---|---|
| Shut-off element material (V4) | Stainless steel |
| Sealant (T) | PTFE |
| Drive (PP) | DAPS, double-acting |
| Torque [Nm] (60) | 60 |
| Swivel direction (R) | Right |
| Nominal swivel angle [°] (90) | 90 |
| Spring ID | None |
| End-position adjustment (C) | Closed |
