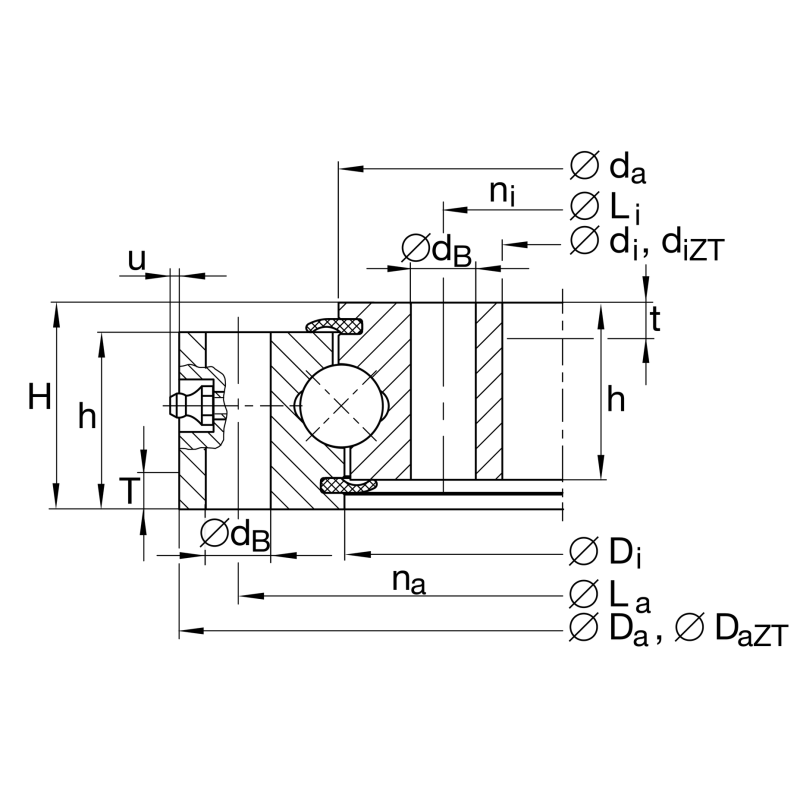

| Inner diameter inner ring | di | 124.50 | mm |
| Outside diameter | D | 234 | mm |
| Width inner ring | B | 30 | mm |
| Normal radial clearance max. | 0.14 | ||
| Normal axial clearance max. | 0.23 |
| Height | T | 35 | mm |
| Width Outer ring | C | 30 | mm |
| Normal radial clearance min. | 0.04 | ||
| Normal axial clearance min. | 0.07 |
| Outside diameter inner ring | da | 180 | mm |
| Pitchcircle diameter fixing holes outer ring | La | 214 | mm |
| Pitchcircle diameter fixing holes inner ring | Li | 144.50 | mm |
| Max. radial load fixing screws (friction locking) | Fr zul | 33,600 |
| Fixing bore | dB | 11 | mm |
| Number of fixing holes in outer ring | na | 12 | |
| Number of fixing holes in inner ring | ni | 12 | |
| Max. protrusion lubrication nipple | umax | 3 | mm |
