| Width (mm) | 12 | ||
| max stroke (mm) | 24 | ||

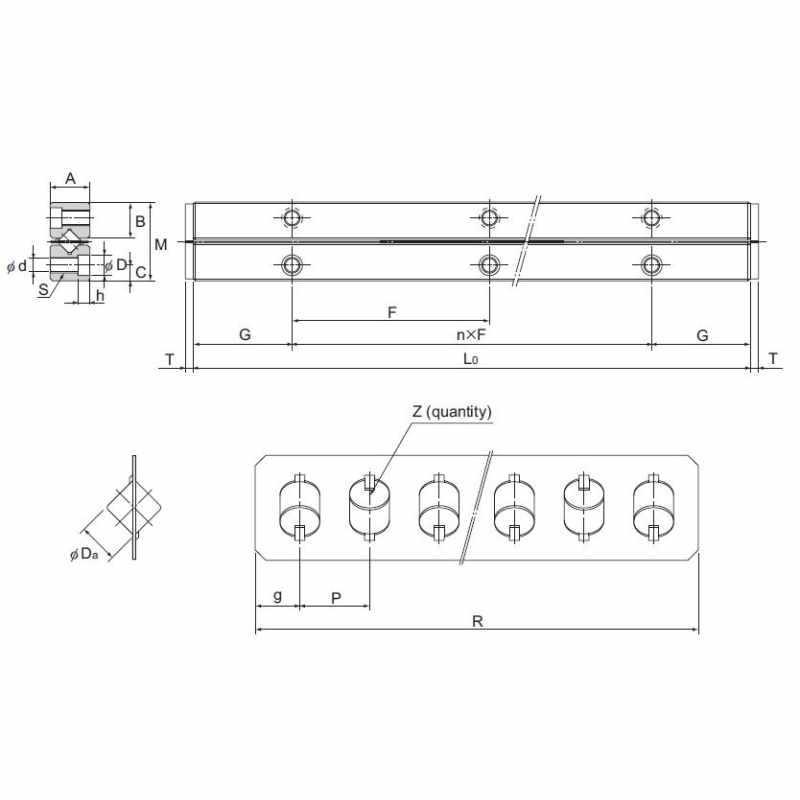

| combined dimensions - m - mm | 12 | ||
| combined dimensions - l0 - mm | 45 | ||
| mounting dimensions - g - mm | 7.50 | ||
| mounting dimensions - c - mm | 2.50 | ||
| mounting dimensions - d - mm | 4.40 | ||
| mounting dimensions - t - mm | 1.50 | ||
| r - mm | 33 | ||
| p - mm | 4 | ||
| per-missiblepreloadδ - μm | –3 | ||
| basic load rating(per roller) - cz0 - kn | 0.27 |
| Height (mm) | 6 | ||
| maxstroke - mm | 24 | ||
| combined dimensions - a - mm | 6 | ||
| mounting dimensions - nxf - mm | 2x15 | ||
| mounting dimensions - b - mm | 5.60 | ||
| mounting dimensions - s - mm | m3 | ||
| mounting dimensions - h - mm | 2 | ||
| da - mm | 2 | ||
| g - mm | 2.50 | ||
| no.ofrollersz | 8 | ||
| basic load rating(per roller) - cz - kn | 0.28 | ||
| rail mass - kg/m | 0.23 |
