| Material housing | High-alloy steel | ||
| Note on materials | Contains paint-wetting impairment substances RoHS-compliant | ||
| Pneumatic connection, port 1 | Cartridge 7.5 mm | ||
| Cable length | 0,07 m ... 0,08 m | ||
| Electrical connection 1, connector system | Open end | ||
| Product weight | 25 g | ||
| Ambient temperature | 5 °C ... 50 °C | ||
| Degree of protection | IP60 | ||
| Note on the medium | Lubricated operation not possible Maximum particle size 10 µm | ||
| Corrosion resistance class CRC | 1 - Low corrosion stress | ||
| Coil resistance R20 | 60,5 Ohm | ||
| Current regulating range | 0 mA ... 225 mA | ||
| Standard flow rate | 200 l/min ... 220 l/min | ||
| Operating pressure | 0 bar ... 3 bar | ||

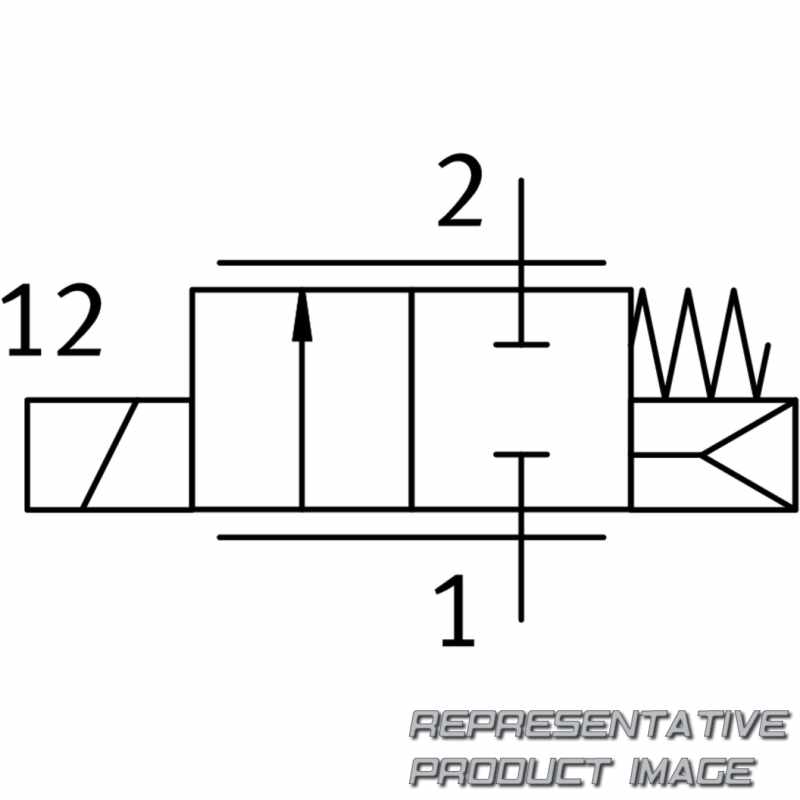

| Symbol | 00995953 | ||
| Type of piloting | Direct | ||
| Design | Directly actuated poppet valve | ||
| Sealing principle | Soft | ||
| Nominal size | 6 mm |
| Material seals | FPM | ||
| Pneumatic connection, port 2 | Cartridge 15 mm | ||
| Type of mounting | On sub-base Plug-in With accessories | ||
| Electrical connection 1, number of connections/cores | 2 | ||
| Electrical connection 1, connection type | Cable | ||
| Storage temperature | -40 °C ... 80 °C | ||
| Note on degree of protection | IP65 with suitable plug In assembled state | ||
| Media temperature | 5 °C ... 50 °C | ||
| Medium | Inert gases Air Oxygen | ||
| Duty cycle | 100% (operating current < 120 mA) | ||
| Max. electrical power consumption | 3 W | ||
| Hysteresis | 22,5 mA | ||
| Nominal operating pressure | 2 bar | ||
| Valve function | 2/2 proportional directional control valve, closed | ||
| Flow direction | Non-reversible | ||
| Type of reset | Mechanical spring | ||
| Mounting position | optional | ||
| Type of actuation | Electric |
