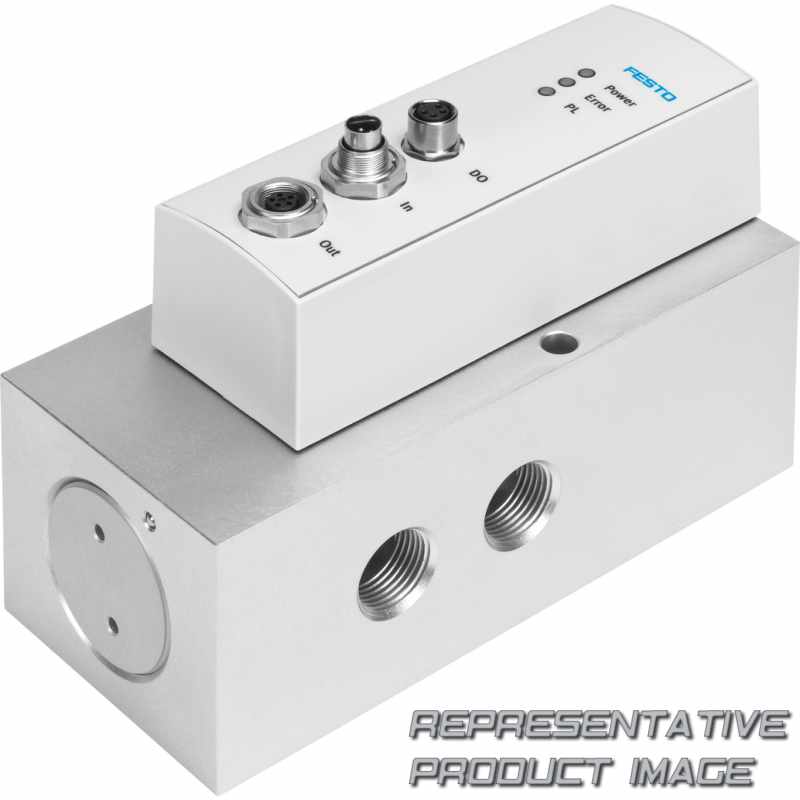

FESTO 1552544 proportional directional control valve

Name: 1552544 FESTO
Brand: FESTO
SKU: 685519-en-gbp
Price: 1535.98 GBP
Availability: InStock

VPWP-10-L-5-Q-10-E-G-EX1

£1,535.98

6 pcs. with 1 to 3 days delivery to United States

Specifications

Series (VPWP)	Proportional directional control valve
Nominal width [mm] (10)	10
Directional control valve type (L)	In-line valve
Valve function (5)	5/3-way valve
Pneumatic connection (Q)	Without push-in fitting

Pressure range [bar] (10)	0 ... 10
Display type (E)	LED
Exhaust (G)	Threaded connection
EU certification (EX1)	II 3G

Technical data

Material housing		Wrought aluminium alloy Anodised
Note on materials		RoHS-compliant
Pneumatic connection, port 4		G3/8
Pneumatic connection, port 2		G3/8
Colour of connections		Port 2: Blue Connection 4: black
Fieldbus interface electrical connection		Socket M8 4-pin
Electrical connection fieldbus interface IN		Plugs M9 5-pin
Digital output design		To IEC 61131-2 Positive logic (PNP) No galvanic isolation Protected against short circuits Reverse supply with no damage
Repetition accuracy FS		< 1 %
Pressure resolution		0,01 bar
Ambient temperature		0 °C ... 50 °C
Media temperature		0 °C ... 50 °C
Corrosion resistance class CRC		1 - Low corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [6:4:4]
Explosion ignition protection type for gas		Ex nA IIC T5 X Gc
Explosion protection		Zone 2 (ATEX)
CE mark (see declaration of conformity)		To EU EMC Directive To EU Explosion Protection Directive (ATEX) In accordance with EU RoHS Directive
Supply voltage of the voltage output		24 V load voltage
Nominal load voltage DC		24 V
Max. current consumption of valve drive		1,2 A
Max. load current of the voltage output		500 mA
Operational voltage range DC		18 V ... 30 V
Standard nominal flow rate		2.000 l/min
Operating pressure positioning/Soft Stop		4 bar ... 8 bar
Status displays		LED yellow = PL (power load) LED green = power LED red = error
Symbol		00992136
Type of piloting		Direct
Type of reset		Magnetic spring
Mounting position		optional Preferably horizontal (display elements facing upwards) If the valve is moved, it must be mounted at a right angle to the direction of movement
Type of actuation		Electric

Material cover		PA-reinforced
Pneumatic connection, port 5		G3/8
Pneumatic connection, port 3		G3/8
Pneumatic connection, port 1		G3/8
Type of mounting		With through-hole With accessories
Electrical connection fieldbus interface OUT		Socket M9 5-pin
Control-Interface		Digital CAN bus with Festo protocol Integrated terminating resistor
Design of the 24 V voltage output		Reverse supply with no damage No galvanic isolation Protected against short circuits Reverse supply with no damage
Linearity error in ± %FS		< 1,5 %
Product weight		1.010 g
Degree of protection		IP65 In assembled state
LABS (PWIS) conformity		VDMA24364-B1/B2-L
Note on operating and pilot medium		Lubricated operation not possible
Explosion ambient temperature		0°C <= Ta <= +50°C
ATEX category gas		II 3G
CE marking (see declaration of conformity)		To UK instructions for EMC To UK EX instructions To UK RoHS instructions
Approval		RCM trademark
Supply voltage of the digital output		24 V load voltage
Max. current consumption, logic		0,15 A
Max. load current of the digital output		500 mA
Load voltage range DC		18 V ... 30 V
Nominal operating voltage DC		24 V
Nominal operating pressure		87 psi
Operating pressure		0 bar ... 10 bar
Valve function		5/3-way proportional directional control valve, closed
Flow direction		Non-reversible
Safety instructions		Safety position VPWP: if there is a problem with the control interface, the valve assumes the closed mid-position.
Design		Piston gate valve With integrated pressure sensors
Sealing principle		Hard
Nominal size		10 mm
