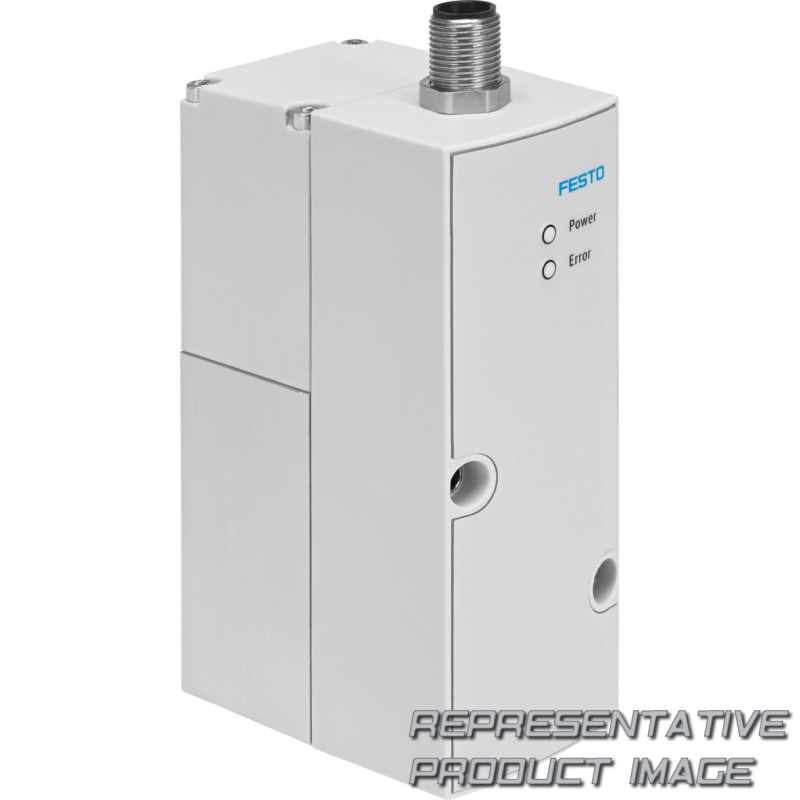

| Material housing | Wrought aluminium alloy Anodised | ||
| Pneumatic connection, port 3 | Sub-base | ||
| Pneumatic connection, port 1 | Sub-base | ||
| Electrical connection | 8-pin M12 Plugs | ||
| Repetition accuracy FS | 0,5 % | ||
| Linearity error in ± %FS | 1 % | ||
| Ambient temperature | 0 °C ... 60 °C | ||
| Media temperature | 10 °C ... 50 °C | ||
| Corrosion resistance class CRC | 2 - Moderate corrosion stress | ||
| CE marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | ||
| KC mark | KC-EMV | ||
| Note on operating and pilot medium | Lubricated operation not possible | ||
| Signal range analogue input | 0 - 10 V 4 - 20 mA 0 - 20 mA | ||
| Residual ripple | 10 % | ||
| Duty cycle | 100% | ||
| Operational voltage range DC | 21,6 V ... 26,4 V | ||
| Max. pressure hysteresis | 0,05 bar | ||
| Pressure regulation range | 0,1 bar ... 10 bar | ||
| Valve function | 3-way proportional pressure regulator | ||
| Type of reset | Mechanical spring | ||
| Symbol | 00995303 | ||
| Short circuit current rating | For all electrical connections | ||
| Mounting position | optional | ||
| Type of actuation | Electric | ||
| Nominal size, supply | 6 mm |
| Note on materials | RoHS-compliant | ||
| Pneumatic connection, port 2 | Sub-base | ||
| Type of mounting | With through-hole With accessories Either: | ||
| Repetition accuracy in ± %FS | 0,5 %FS | ||
| Temperature cooefficient | 0,04 %/K | ||
| Product weight | 400 g | ||
| Degree of protection | IP65 | ||
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | ||
| Certificate issuing authority | UL E322346 | ||
| CE mark (see declaration of conformity) | To EU EMC Directive In accordance with EU RoHS Directive | ||
| Approval | RCM trademark c UL us listed (OL) | ||
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases | ||
| Signal range analogue output | 0 - 10 V 0 - 20 mA 4 - 20 mA | ||
| Max. electrical power consumption | 7 W | ||
| Max. current consumption | 300 mA | ||
| Standard nominal flow rate | 1.400 l/min | ||
| Inlet pressure 1 | 0 bar ... 11 bar | ||
| Display type | LED | ||
| Type of piloting | Pilot actuated | ||
| Reverse polarity protection | For all electrical connections | ||
| Safety instructions | Safety position VPPX: if the power supply cable is interrupted, output pressure is maintained unregulated. | ||
| Design | Piloted diaphragm regulator | ||
| Sealing principle | Soft | ||
| Nominal size, exhaust | 4,5 mm |
