| Material end plate | Die-cast aluminium PA-reinforced | ||

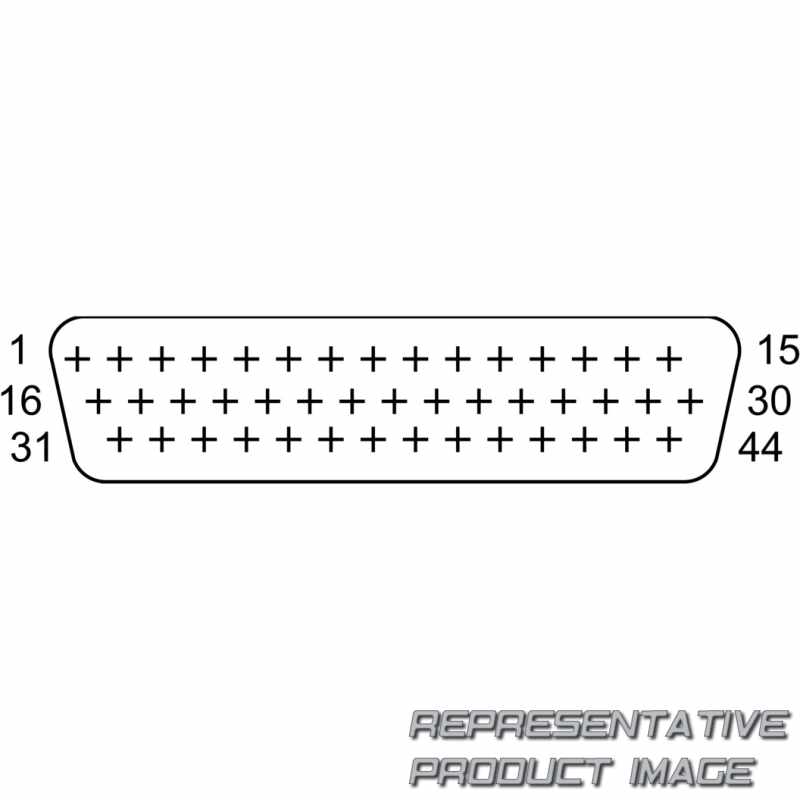

| Electrical connection 1, connection pattern | 00995647 | ||
| Electrical connection 1, connector system | Sub-D | ||
| Electrical connection 1, function | Multi-pin plug | ||
| Ambient temperature | -5 °C ... 50 °C | ||
| Degree of protection | IP67 | ||
| Corrosion resistance class CRC | 3 - high corrosion stress | ||
| Pilot pressure | 3 bar ... 8 bar | ||
| Max. number of valve coils | 32 | ||
| Max. number of valve positions | 32 | ||
| Width | 43 mm |
| Note on materials | RoHS-compliant | ||
| Electrical connection 1, number of connections/cores | 44 | ||
| Electrical connection 1, connection type | Plugs | ||
| Product weight | 190 g | ||
| Note on degree of protection | In assembled state with accessories VMPAL-KM | ||
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | ||
| Nominal operating voltage DC | 24 V | ||
| Operating pressure | -0,9 bar ... 10 bar | ||
| Valve terminal structure | Valve sizes can be mixed | ||
| Length | 107,3 mm |
