| Material end plate | PPA reinforced | ||
| LED display, bus-specific | 1x communication status | ||
| Electrical connection 1, number of connections/cores | 5 | ||
| Electrical connection 1, connection type | Plugs | ||
| IO-Link, Min. cycle time | Device 3.2 ms | ||
| IO-Link, Number of ports | 1 | ||
| IO-Link, communication mode | COM2 (38.4 kBaud), COM3 (230.4 kBaud) | ||
| Product weight | 170 g | ||
| Note on degree of protection | In assembled state | ||
| Storage temperature | -20 °C ... 40 °C | ||
| Corrosion resistance class CRC | 3 - high corrosion stress | ||
| Nominal operating voltage DC | 24 V | ||
| Internal current consumption, load voltage | 30 mA | ||
| Operating pressure | -0,9 bar ... 10 bar | ||
| Valve terminal structure | Valve sizes can be mixed | ||
| Diagnosis | Undervoltage of load supplies | ||
| Reverse polarity protection | For operating voltage | ||
| Width | 64,8 mm |
| Note on materials | RoHS-compliant | ||

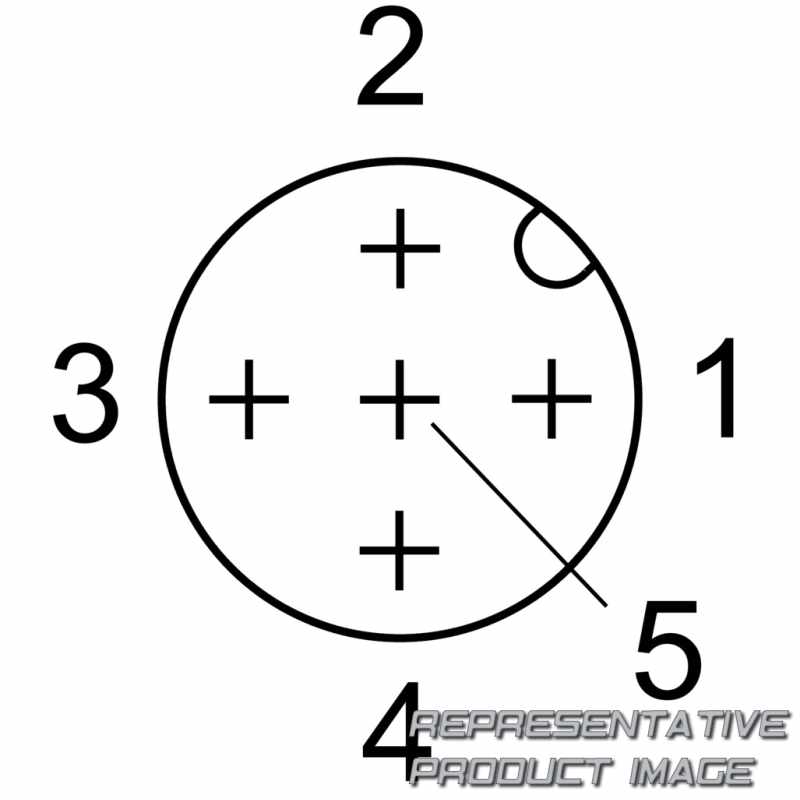

| Electrical connection 1, connection pattern | 00995383 | ||
| Electrical connection 1, connector system | M12x1, A-coded to EN 61076-2-101 | ||
| Electrical connection 1, function | IO-Link | ||
| IO-Link, Process data length OUT | 1 - 4 bytes | ||
| IO-Link, Port class | B | ||
| IO-Link, Protocol version | Device V 1.0 | ||
| Ambient temperature | -5 °C ... 50 °C | ||
| Degree of protection | IP65 IP67 | ||
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | ||
| Protocol | I-Port IO-Link® | ||
| Internal current consumption, operating voltage | 30 mA | ||
| Pilot pressure | 3 bar ... 8 bar | ||
| Max. number of valve coils | 32 | ||
| Max. number of valve positions | 32 | ||
| Mounting position | optional | ||
| Length | 107,3 mm |
