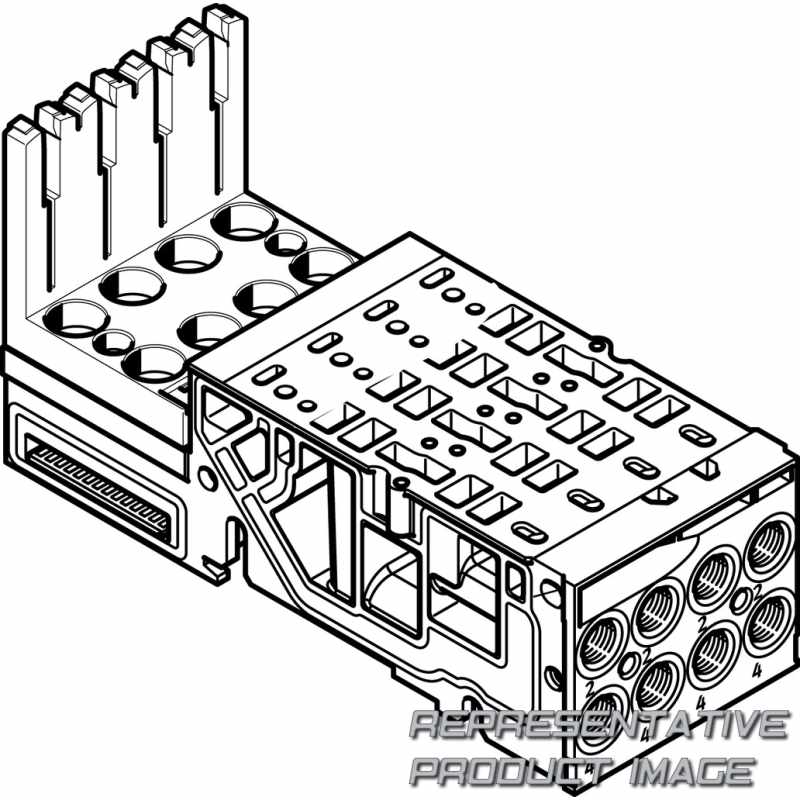

FESTO 546806 sub-base

Name: 546806 FESTO
Brand: FESTO
SKU: 690083-en-gbp
Price: 73.35 GBP
Availability: InStock

VMPA1-AP-4-1-EMM-4

£73.35

1 pcs. with 1 to 3 days delivery to United States

Specifications

Operating Pressure	-0,9 bar ... 10 bar
Width	42 mm

Weight	210g

Material sub-base		Die-cast aluminium
Pneumatic connection, port 4		M7
Product weight		210 g
LABS (PWIS) conformity		VDMA24364-B1/B2-L
Pilot pressure		3 bar ... 8 bar
Max. number of valve positions		4
Length		107,3 mm

Note on materials		RoHS-compliant
Pneumatic connection, port 2		M7
Ambient temperature		-5 °C ... 50 °C
Corrosion resistance class CRC		0 - No corrosion stress
Operating pressure		-0,9 bar ... 10 bar
Grid dimension		10,5 mm
Width		42 mm
