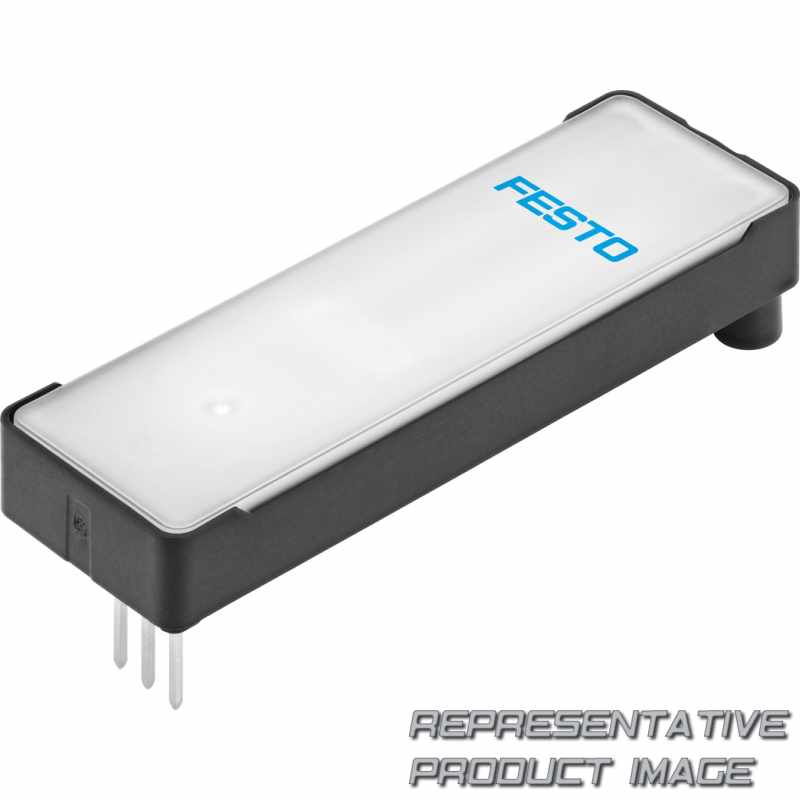

FESTO 8065738 piezo valve

Name: 8065738 FESTO
Brand: FESTO
SKU: 664405-en-gbp
Price: 91.64 GBP
Availability: SoldOut

VEMP-BS-3-16-D5-F-28T1

£91.64

Limited stock only available on quotation

Specifications

Series (VEMP)	Piezo valve
Directional control valve type (B)	Sub-base valve
Design principle (S)	Bending actuator
Valve function (3)	3/3-way valve, normally closed
Nominal width [mm] (16)	1.60

CE mark (see declaration of conformity)		To EU Low Voltage Directive
Type of mounting		On manifold rail On sub-base
Grid dimension		17,2 mm
Material cover		PA-reinforced
Material seals		EPDM
Max. electrical power consumption		0 W
Operational voltage range DC		0 V ... 310 V
Storage temperature		-20 °C ... 70 °C
Media temperature		-20 °C ... 60 °C
Pressure dew point		≤ -20 °C
Grade of filtration		≤ 5 µm
Operating medium		Compressed air as per ISO 8573-1:2010 [5:3:1]
Medium		Inert gases Air Oxygen (oxygen applications to IEC 60601-1 only on request) Nitrogen
Pneumatic connection, port 2		Flange
Type of actuation		Electric
Valve function		3/3-way, closed, monostable
Nominal operating pressure		0,5 bar
Standard nominal flow rate 2-3		19 l/min
Note on degree of protection		Depending on connection block
Size of pack		1

Mounting position		optional
Dimensions (W x L x H)		17.2 x 52.1 x 7.2 mm
Note on materials		RoHS-compliant
Material housing		PA-reinforced
Product weight		8 g
Max. current consumption		5 mA
Nominal operating voltage DC		310 V
Ambient temperature		-20 °C ... 70 °C
Max. switching frequency		5 Hz
Relative air humidity		0 - 70 % Non-condensing
Note on operating and pilot medium		Lubricated operation not possible
Special characteristics		Oxygen-compatible to DIN EN 1797
Pneumatic connection, port 3		Flange
Pneumatic connection, port 1		Flange
Nominal size		1,6 mm
Operating pressure		0 bar ... 0,7 bar
Flow direction		Non-reversible
Standard nominal flow rate		18 l/min

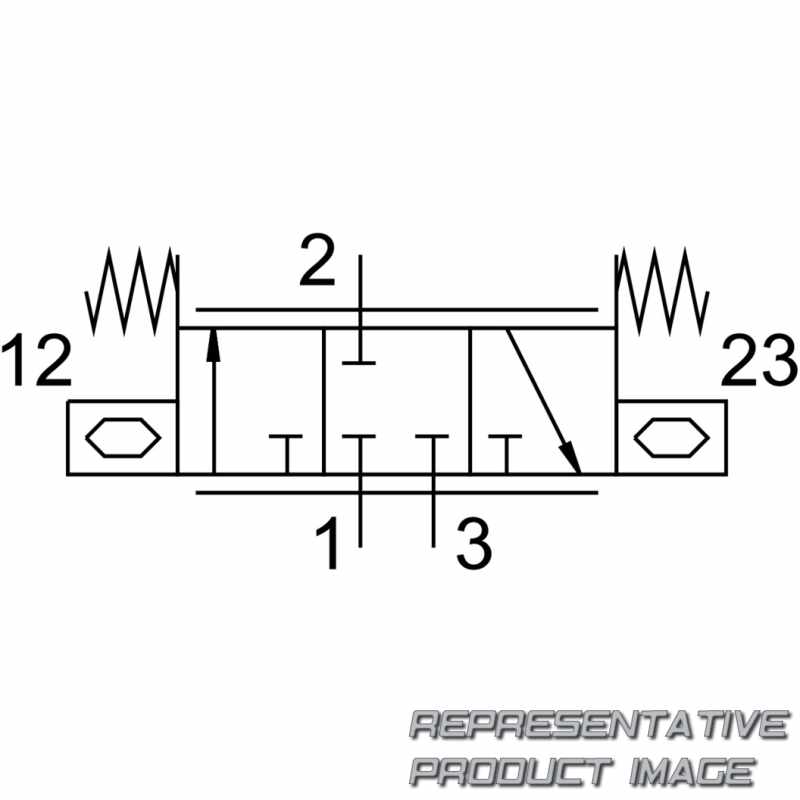

Symbol		00992802
