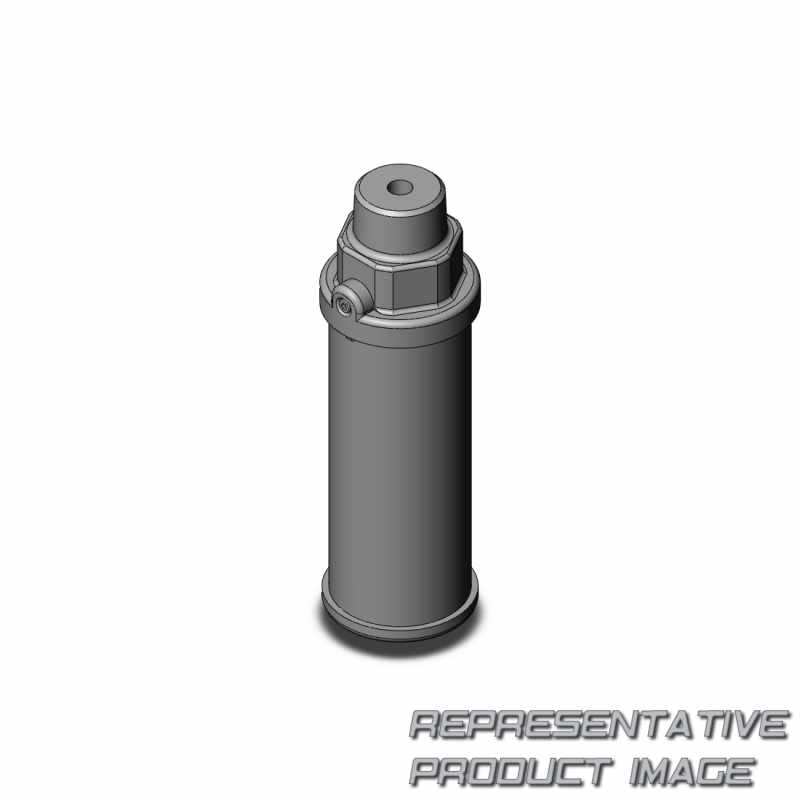

| model | vchnf4 | ||
| max. operating pressure (mpa) | 5.0 (solenoid valve inlet pressure) | ||
| Port size | r1 | ||
| sound absorbing material effective area (single) (mm2) | 500 | ||
| ambient temperature (c) | 5 to 80 | ||
| Weight | 2.14602 lb |
| fluid | air, insert gas | ||
| relief valve unlocking pressure (mpa) | 1.80 | ||
| effective area (mm2) | 180 | ||
| fluid temperature (c) | 5 to 80 | ||
| noise reduction db(a) | 35 (supply pressure 4.0 mpa, back pressure 2.0 mpa) |
