| Weight | 4.28325 lb | ||
| coil specification - coil insulation type | class b | ||
| coil specification - allowable voltage fluctuation | ?10% of rated voltage | ||
| valve specification - mass | g1/2, 3/4: 1.83 kg, g1: 2.11 kg | ||
| valve specification - note 2) | 2 note 3) | ||
| valve specification - enclosure | drip proof (equivalent to ip65) | ||
| valve specification - body material | aluminum + hard anodized | ||
| valve specification - fluid temperature | ?5 to 80c | ||
| valve specification - max. operating pressure | 5.0 mpa | ||
| valve specification - flow characteristics - b | g1/2 0.26 | ||
| valve specification - orifice | ?18 | ||
| valve specification - valve construction | pilot operated, poppet |
| coil specification - power consumption note 4) | 5 w (dc), 13 va (ac) | ||
| coil specification - electrical entry | din connector | ||
| coil specification - rated voltage | 12 vdc, 24 vdc, 100 vac, 200 vac (50/60 hz) | ||
| valve specification - mounting orientation | unrestricted | ||
| valve specification - port size | g1/2, 3/4, 1 (conforming to iso1179-1 on the pneumatic/hydraulic g thread) | ||
| valve specification - main seal material | polyurethane elastomer | ||
| valve specification - ambient temperature | ?5 to 80c | ||
| valve specification - note 1) | 0.5 to 5.0 mpa | ||
| valve specification - flow characteristics - cv | g1/2 1 2 5.32 3 5.8 | ||
| valve specification - flow characteristics - c value (effective area) | g1/2 1 2:20 dm3/(s bar) (100mm2) 2 3:22 dm3/(s bar) (110mm2) | ||
| valve specification - fluid | air, inert gas | ||

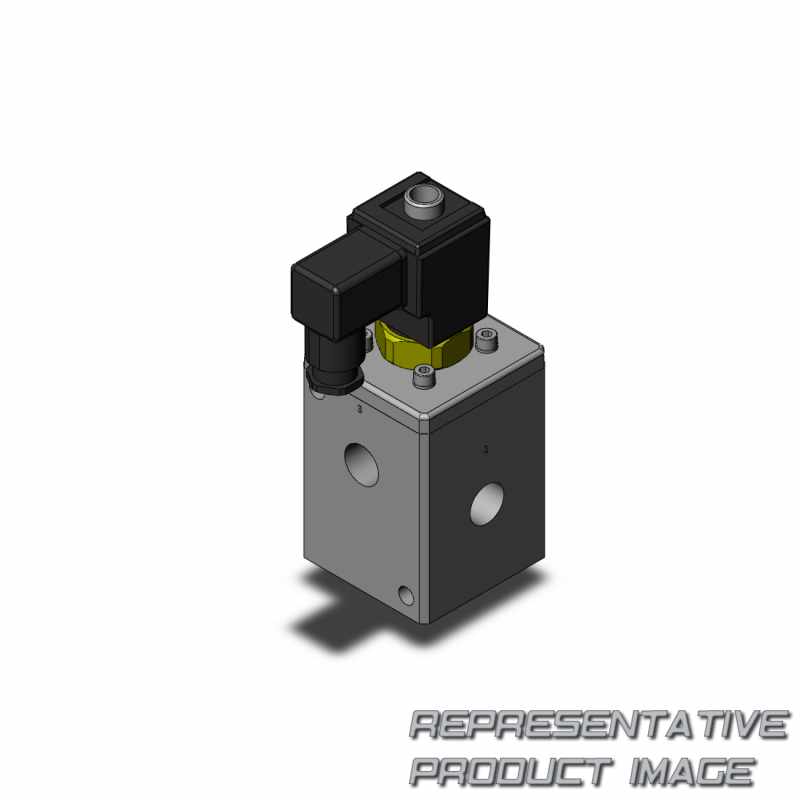

| model | vch410 |
