| Material seals | NBR | ||
| Material screw-in stud | Anodised wrought aluminium alloy | ||
| Actuating force | 37 N | ||
| LABS (PWIS) conformity | VDMA24364-B2-L | ||
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) | ||
| Type of piloting | Direct | ||
| Mounting position | optional | ||
| Grid dimension | 45 mm | ||
| Material housing | Anodised wrought aluminium alloy | ||
| Operating pressure | -0,95 bar ... 12 bar | ||
| Standard nominal flow rate | 3.420 l/min | ||
| Type of actuation | Manual | ||
| Pneumatic connection, port 1 | G1/2 |
| Note on materials | RoHS-compliant | ||
| Product weight | 90 g | ||
| Media temperature | -10 °C ... 80 °C | ||
| Corrosion resistance class CRC | 2 - Moderate corrosion stress | ||

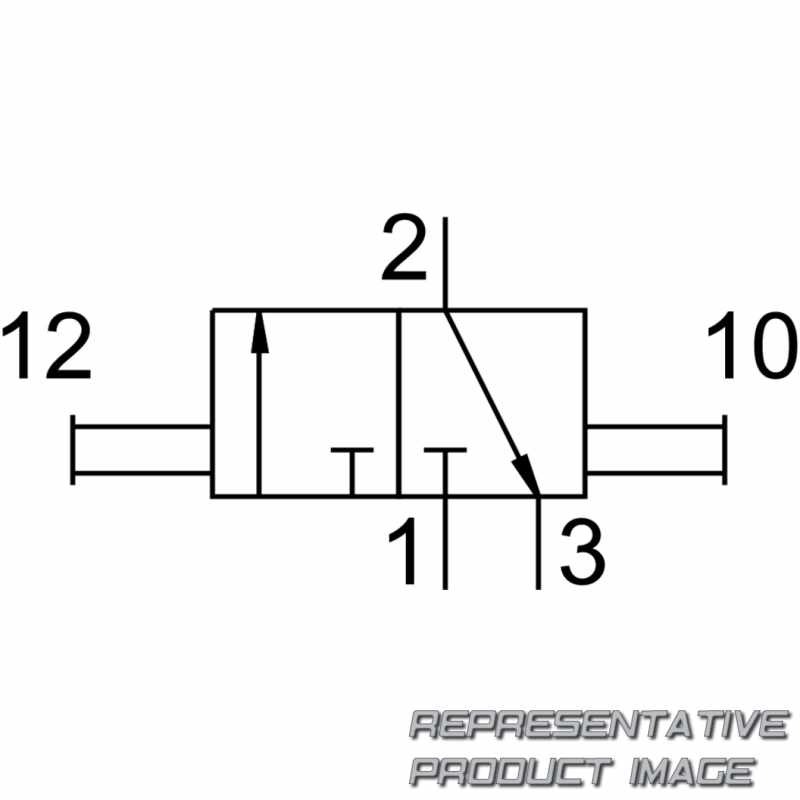

| Symbol | 00991286 | ||

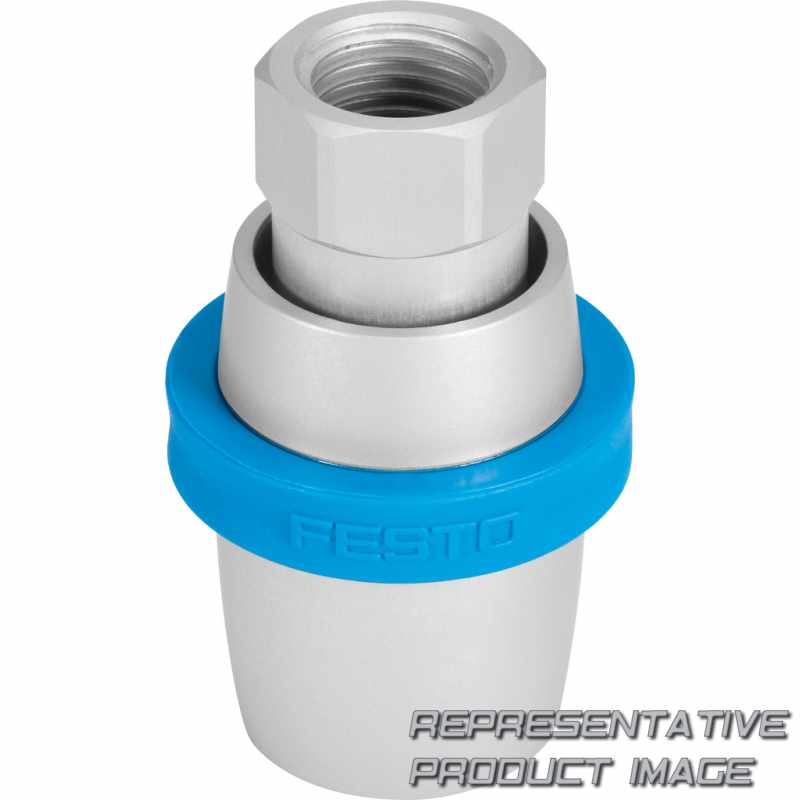

| Design | Sleeve valve | ||
| Sealing principle | Soft | ||
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] | ||
| Ambient temperature | -10 °C ... 80 °C | ||
| Nominal size | 12,1 mm | ||
| Type of mounting | In-line installation Screw-in | ||
| Pneumatic connection, port 2 | G1/2 | ||
| Valve function | 3/2 double solenoid |
