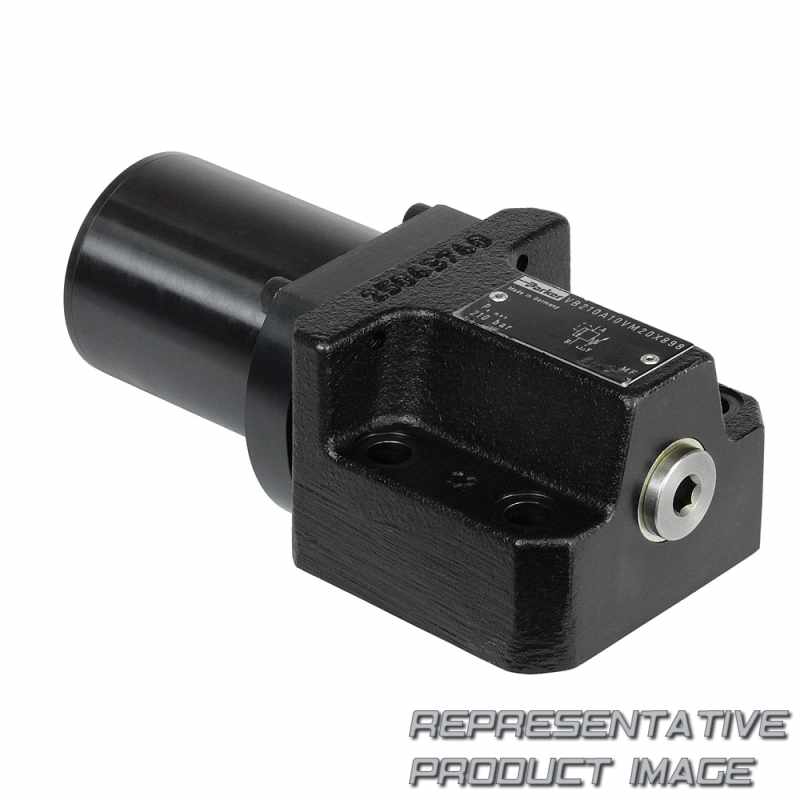

VB160A06VG Parker Hannifin

PARKER VB160A06VG

Name: VB160A06VG PARKER
Brand: PARKER
SKU: 562282-en-gbp
Price: 272.17 GBP
Availability: InStock

£272.17 ~~£544.35~~ -50%

available with 3 to 4 week lead time shipping to United States

Specifications

Direct operated pressure relief valves with manual adjustment series VS in size NG06 and VB in size NG06/NG10 respond very quickly and work extremely stable and precise. The perfect choice for use in machine tools as well as other applications.

max. pressure	350 bar
Seal	fpm

Weight	1.30Kg

Technical data

gauge port		g 1/4"
pressure range (bar)		160
Flow direction		p-a (series vb)
locking mechanism		omit
seal material		fpm
Mounting type		subplate mounting
actuation type		manually
product series		pressure valve
maximum operating temperature		60 °c
body material		steel

pressure control range		160 bar
port connection		ng06 / cetop 03
gauge port connection		g 1/4"
Nominal size		ng06 / cetop 03
adjustment mechanism		screw with hexagon socket
operation type		direct
Weight		1.3 kg
maximum operating pressure		350 bar
minimum operating temperature		-20 °c
for fluid type		water glycol
