| Material housing | Die-cast aluminium | ||
| Pneumatic connection, port 3 | M5 | ||
| Type of mounting | With through-hole | ||
| Media temperature | -20 °C ... 80 °C | ||
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] | ||
| Operating pressure | 1,5 bar ... 10 bar | ||
| Design | T-shape | ||
| Mounting position | optional |
| Vacuum connection | M5 | ||
| Pneumatic connection, port 1 | M5 | ||
| Ambient temperature | -20 °C ... 80 °C | ||
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) | ||
| Max. vacuum | 80 % | ||

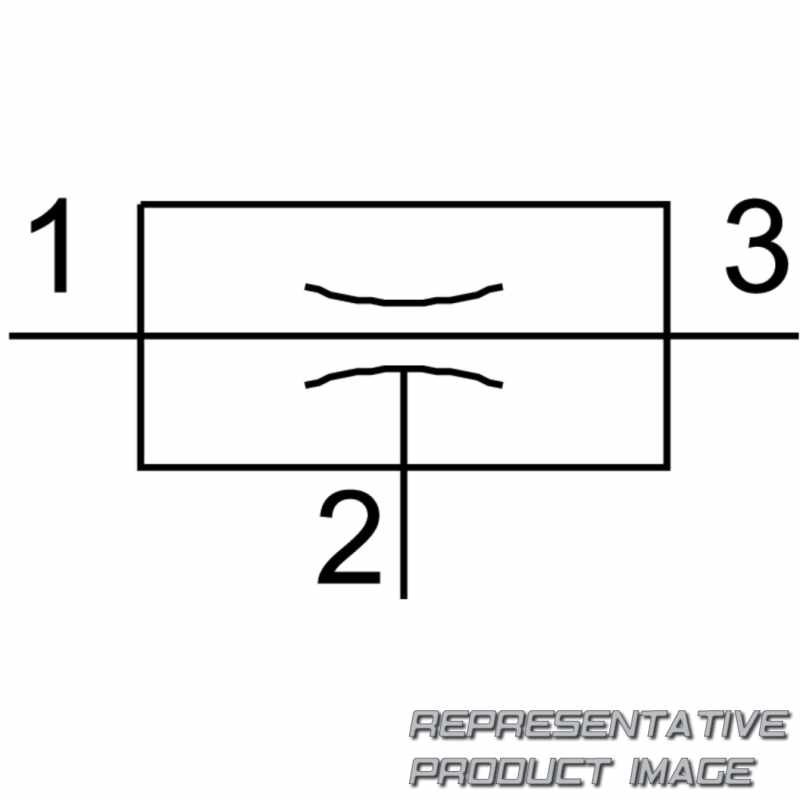

| Symbol | 00991482 | ||
| Ejector characteristic | High vacuum | ||
| Nominal size, Laval nozzle | 0,5 mm |
