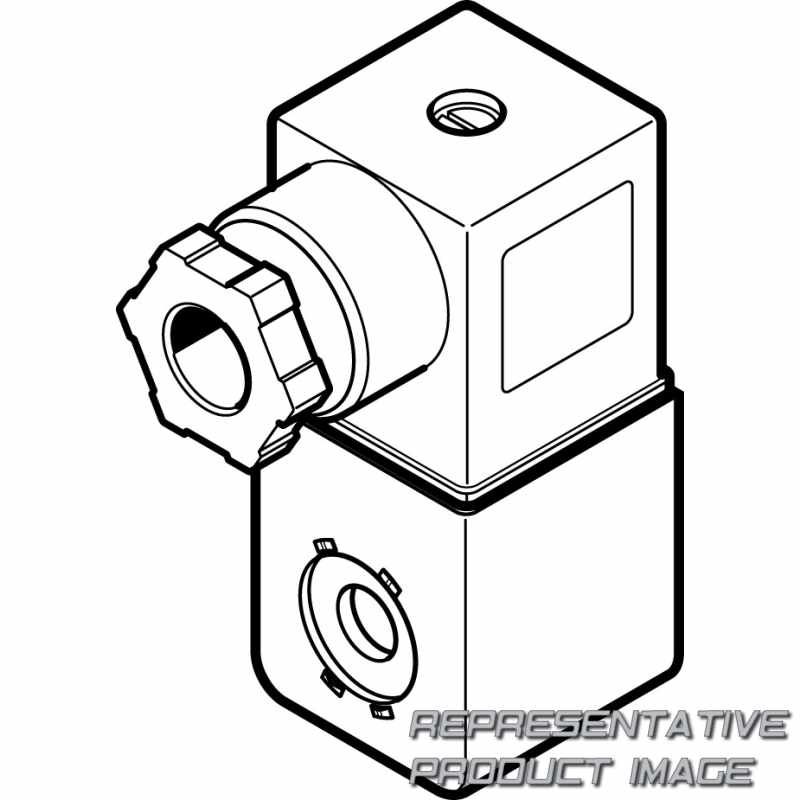

FESTO 8029138 solenoid coil

Name: 8029138 FESTO
Brand: FESTO
SKU: 676165-en-gbp
Price: 40.34 GBP
Availability: InStock

VACN-N-A1-3A-EX2-N

£40.34 1 pcs. with 1 to 3 days delivery to United States

Specifications

Series (VACN)	Solenoid coil, series N
Solenoid coil type (N)	Solenoid coil N for armature tube 9 mm
Electrical connection (A1)	Connection pattern type A, to EN 175 301
Nominal operating voltage (3A)	230 V AC/50-60 Hz

Cable length [m]	Undefined
EU certification (EX2)	II 3GD
Certification	None
Type of ignition protection (N)	Non-sparking

Material winding		Copper
Material housing		Polymer Steel
Type of mounting		Via knurled nut
Product weight		95 g
Degree of protection		IP65
Corrosion resistance class CRC		2 - Moderate corrosion stress
Explosion ignition protection type for dust		Ex tc IIIC T95°C/T105°C X Dc
ATEX category dust		II 3D
Certificate issuing authority		DNVGL-TAA000011J
CE mark (see declaration of conformity)		To EU Explosion Protection Directive (ATEX)
Permissible voltage fluctuations		+/- 10 %
Insulation material class of enamelled wire		H
Duty cycle		100%
Type of actuation		Electric

Material electrical contact		Brass
Note on materials		RoHS-compliant
Electrical connection		Type A To DIN EN 175301-803
Ambient temperature		-20 °C ... 60 °C
LABS (PWIS) conformity		VDMA24364-B2-L
Explosion ambient temperature		-20°C <= Ta <= +60°C
Explosion ignition protection type for gas		Ex nA IIC T5/T4 X Gc
ATEX category gas		II 3G
Explosion protection		Zone 2 (ATEX) Zone 22 (ATEX)
Maritime classification		See certificate
Characteristic coil data		230 V AC: 50 Hz, pick-up power 6.9 VA, holding power 4.1 VA 230 V AC: 60 Hz, pick-up power 5.4 VA, holding power 3.3 VA
Insulation material class		F
Mounting position		optional
