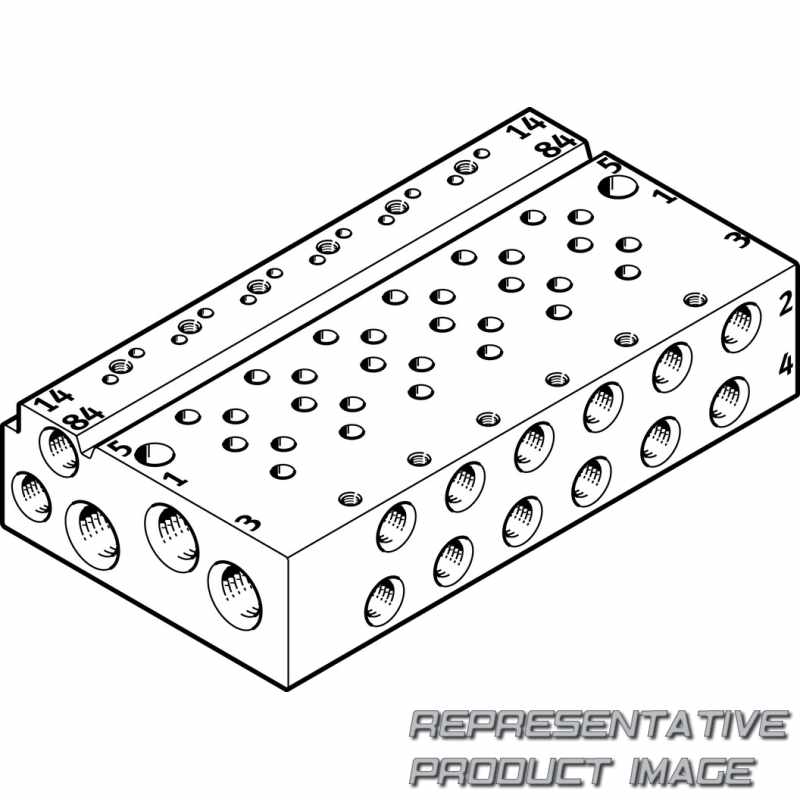

FESTO 566550 manifold rail

Name: 566550 FESTO
Brand: FESTO
SKU: 669102-en-gbp
Price: 53.08 GBP
Availability: InStock

VABM-L1-10AW-M7-6

£53.08

available with 3 to 7 days delivery to United States

Specifications

Operating Pressure	-0,9 bar ... 10 bar
Pneumatic connection	M7

Weight	132g

Material manifold		Wrought aluminium alloy
Pneumatic connection, port 5		M7
Pneumatic connection, port 3		M7
Pneumatic connection, port 1		M7
Pilot air port 12/14		M5
Max. tightening torque wall mounting		1,5 Nm
Max. tightening torque H-rail mounting		1,5 Nm
Approval		RCM trademark c UL us - Recognized (OL)
Max. number of valve positions		16

Note on materials		RoHS-compliant
Pneumatic connection, port 4		M5
Pneumatic connection, port 2		M5
Pilot exhaust port 82/84		M5
Product weight		132 g
Max. tightening torque for valve mounting		0,45 Nm
Corrosion resistance class CRC		2 - Moderate corrosion stress
Operating pressure		-0,9 bar ... 10 bar
Grid dimension		10,5 mm
