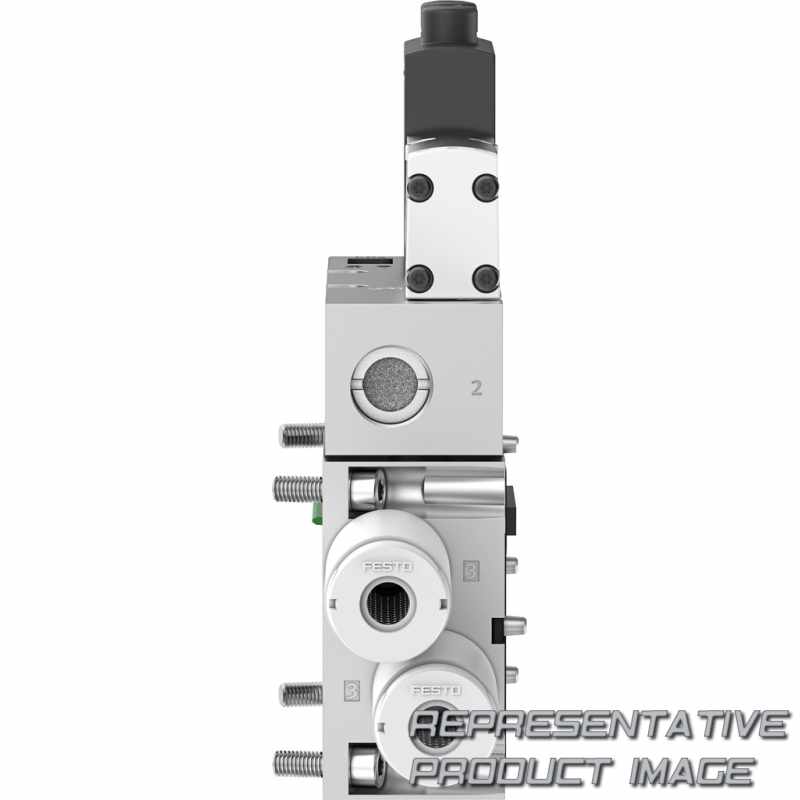

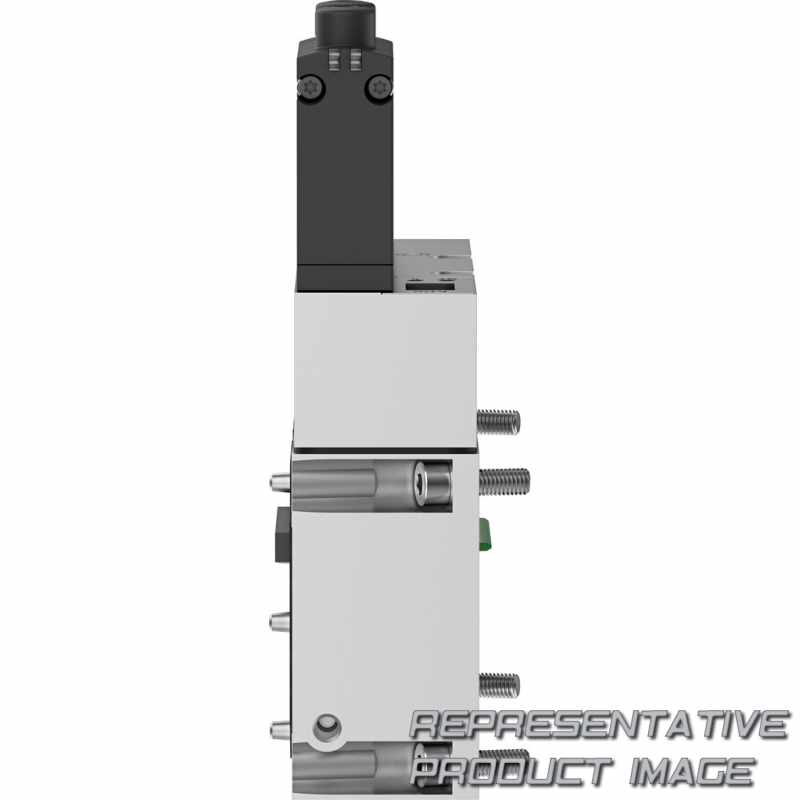

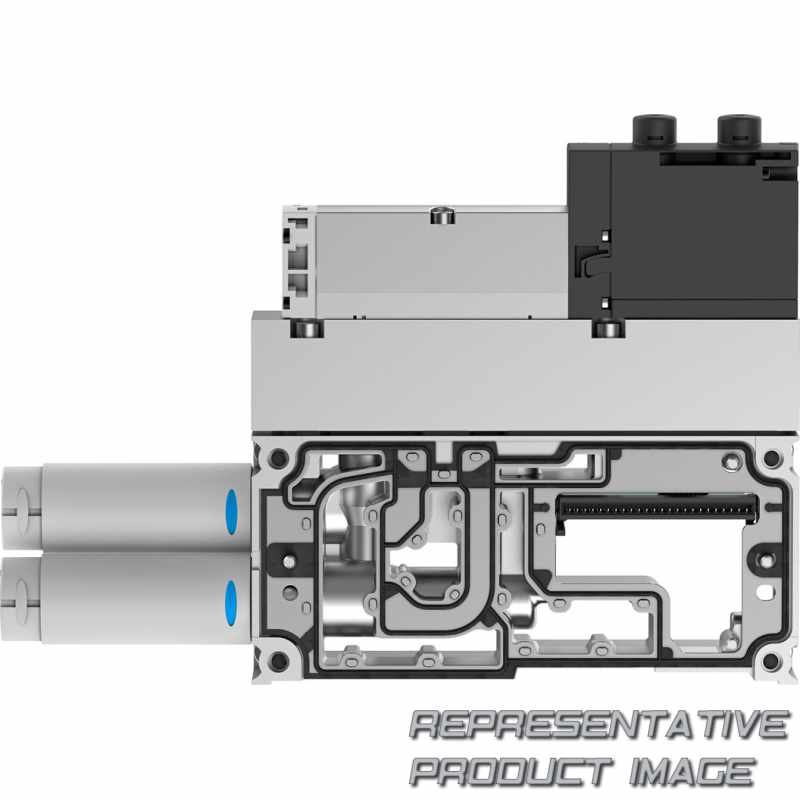

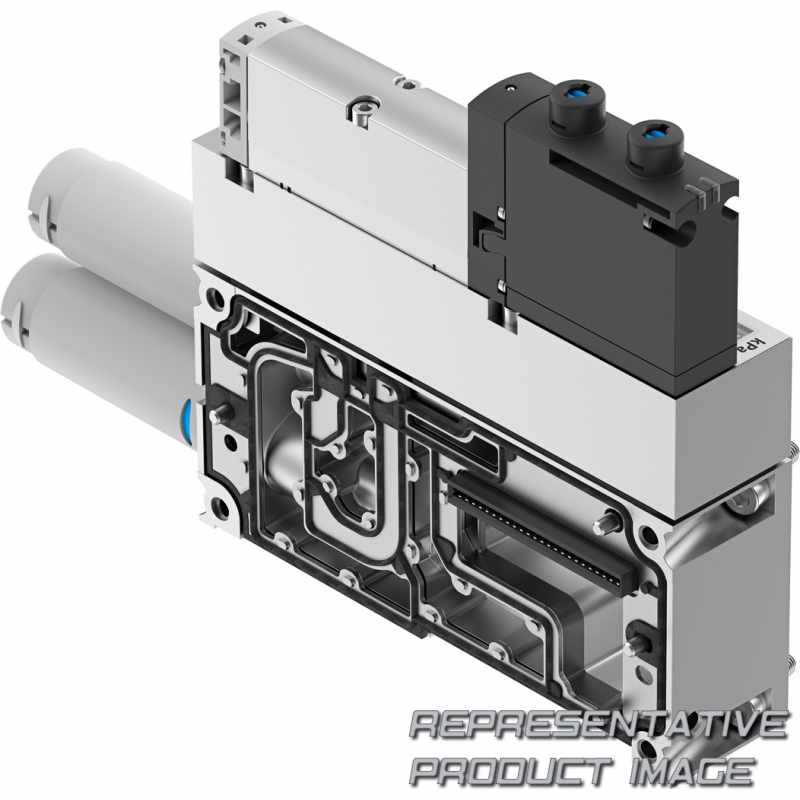

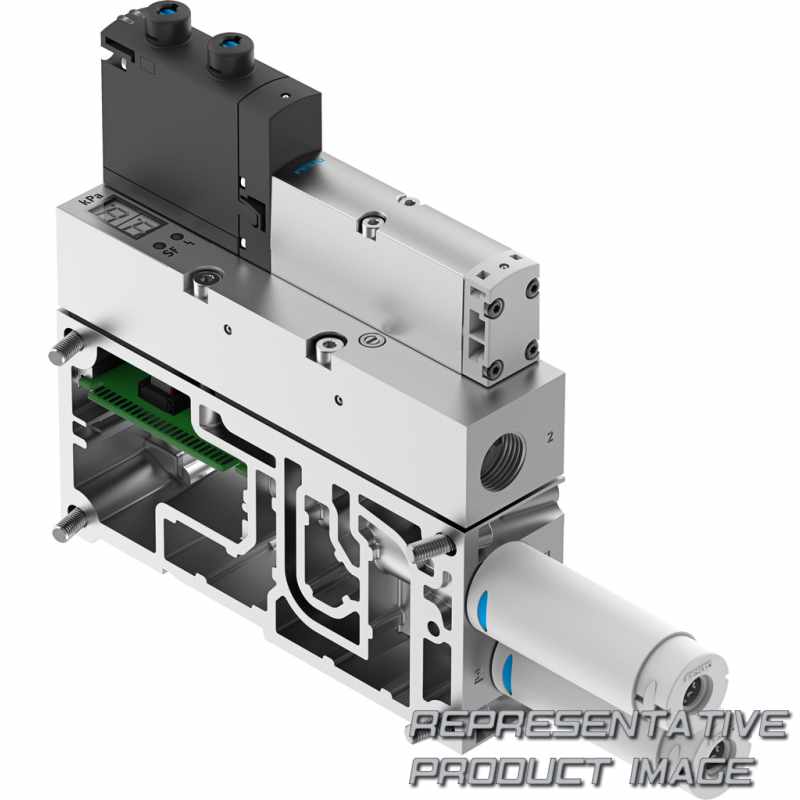

| Material transmitter nozzle | Wrought aluminium alloy | ||
| Material silencer | POM PU foam | ||
| Material plate | Die-cast aluminium | ||
| Material receiver nozzle | POM | ||
| Note on materials | RoHS-compliant | ||
| Pneumatic connection, port 3 | Open silencer | ||
| Electrical control | Fieldbus | ||
| Accuracy in ± % FS | 3 %FS | ||
| Display range start value | 0 MPa | ||
| Product weight | 920 g | ||
| Protection class | III | ||
| Sound pressure level at nominal operating pressure | 73 dB(A) | ||
| Corrosion resistance class CRC | 0 - No corrosion stress | ||
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] | ||
| Approval | RCM trademark | ||
| No-load supply current | 30 mA | ||
| Air supply time at nominal operating pressure | 0,2 s | ||
| Pilot pressure | 4 bar ... 10 bar | ||
| Max. vacuum | 0,092 MPa | ||
| Operating pressure | 4 bar ... 8 bar | ||
| Switching status display sensor | LED | ||
| Setting options | Teach-in Via parameter sets | ||
| Manual override | Detenting Non-detenting Covered | ||
| Mounting position | optional | ||
| Type of actuation | Electric | ||
| Nominal size, Laval nozzle | 2 mm | ||
| Setting range threshold value | 0 MPa ... 0,099 MPa | ||
| Display type | LED LED indicator 2-digit | ||

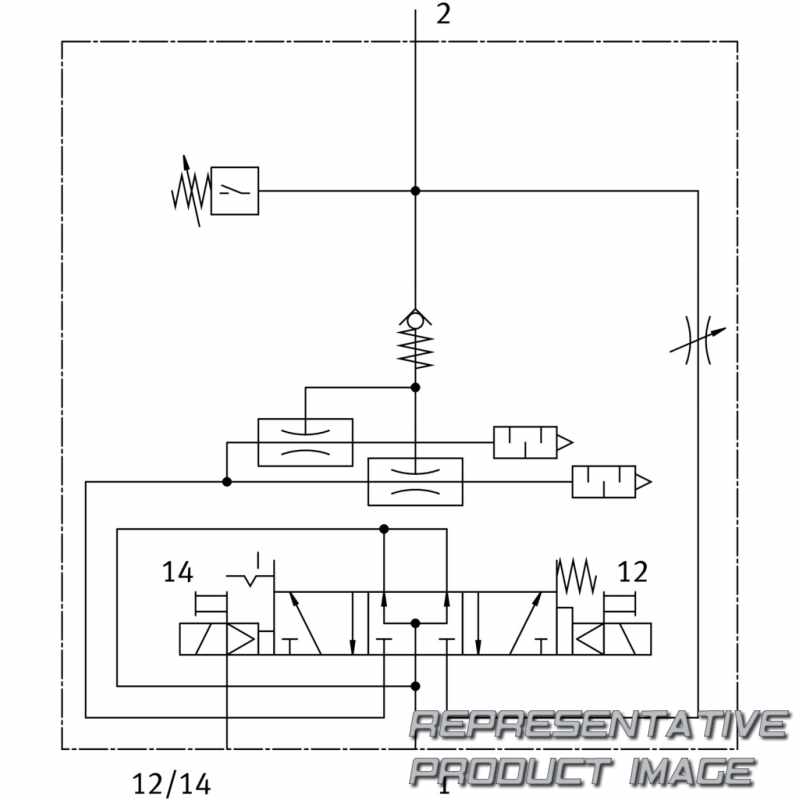

| Symbol | 00995924 | ||
| Measuring principle | Piezoresistive | ||
| Integrated function | Electric ejector pulse Flow control Electric on-off valve Air saving function, electrical Check valve Open silencer Vacuum switch |
| Material screws | Steel | ||
| Material adjusting screw | High-alloy stainless steel | ||
| Material housing | Wrought aluminium alloy | ||
| Material seals | HNBR NBR | ||
| Vacuum connection | G3/8 | ||
| Electrical connection | Via CPX | ||
| Reproducibility of switching values FS | 1 % | ||
| Display range end value | 0,099 MPa | ||
| Pressure measuring range | -1 bar ... 0 bar | ||
| Ambient temperature | -5 °C ... 50 °C | ||
| Degree of protection | IP65 | ||
| Media temperature | -5 °C ... 50 °C | ||
| Note on operating and pilot medium | Lubricated operation not possible | ||
| CE mark (see declaration of conformity) | To EU EMC Directive | ||
| Duty cycle | 100% | ||
| Operational voltage range DC | 21,6 V ... 30 V | ||
| Max. suction flow rate against atmosphere | 99 l/min | ||
| Nominal operating pressure | 6 bar | ||
| Operating pressure for max. vacuum | 4 bar | ||
| Operating pressure for max. suction flow rate | 4 bar | ||
| Signal status display | LED | ||
| Setting range hysteresis | 0 MPa ... 0,09 MPa | ||
| Ejector characteristic | High vacuum Standard | ||
| Reverse polarity protection | For all electrical connections | ||
| Silencer design | Open | ||
| Construction width | 35 mm | ||
| Displayable units | kPa | ||
| Valve function | 5/3-way, pressurised | ||
| Switching function | Window comparator Threshold value comparator | ||
| Measured variable | Relative pressure |
