| Material housing | Die-cast aluminium | ||
| Mounting with vertical stacking | On manifold sub-base On individual sub-base | ||
| Ambient temperature | -5 °C ... 50 °C | ||
| Degree of protection | IP65 NEMA 4 | ||
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) | ||
| CE mark (see declaration of conformity) | To EU Low Voltage Directive | ||

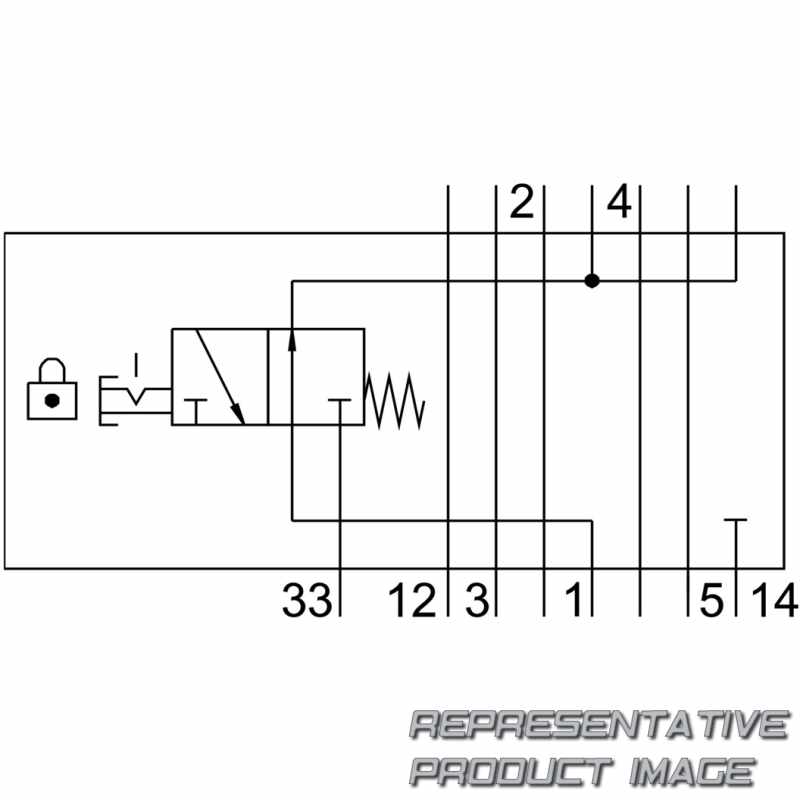

| Symbol | 00995593 | ||
| Based on standard | ISO 15407-2 |
| Note on materials | RoHS-compliant | ||
| Product weight | 231 g | ||
| Pilot medium | Compressed air to ISO 8573-1:2010 [7:4:4] | ||
| Corrosion resistance class CRC | 0 - No corrosion stress | ||
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] | ||
| Operating pressure | 10 bar | ||
| Mounting position | optional | ||
| Construction width | 18 mm |
