| Material housing | Die-cast aluminium | ||
| Note on materials | RoHS-compliant | ||
| Electrical control | Fieldbus | ||
| Ambient temperature | -5 °C ... 50 °C | ||
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | ||
| Isolation channel - internal bus | yes | ||
| Max. total current per module | 6 A | ||
| Intern power consumption nominal operating voltage | Typ. 11 mA (power supply for electronics) Typ. 45 mA (load voltage supply for valve) | ||
| Fuse protection (short circuit) | Internal electronic fuse protection per valve output | ||
| LED display | 1 Group diagnostics 3 load supply Channel status on valves | ||
| Diagnosis | Wire break per solenoid coil Short circuit of valves Undervoltage of valves |
| Material cover | PA | ||

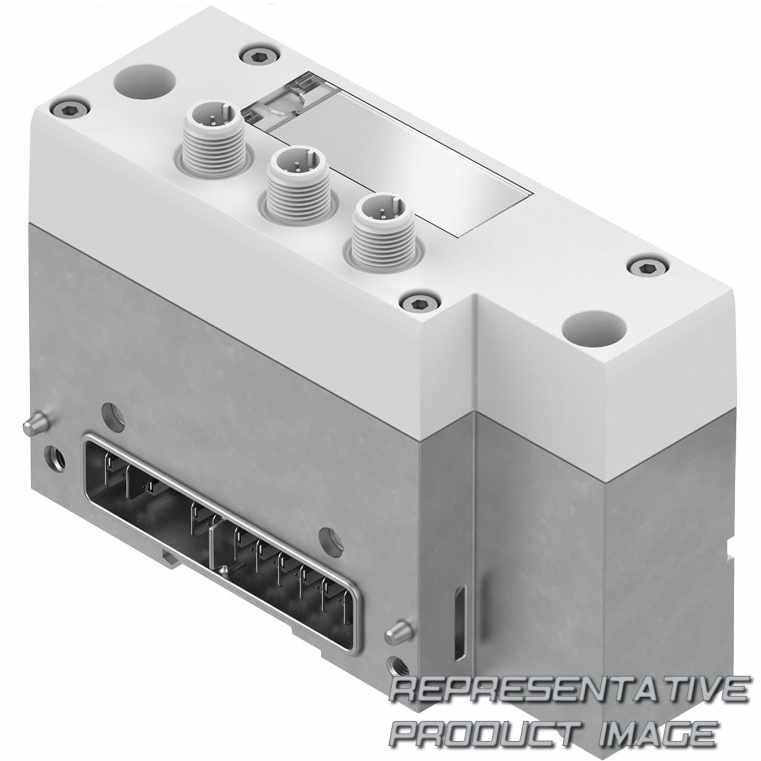

| Electrical connection | 3x M12x1 A-coded 5-pin Plugs Via CPX | ||
| Product weight | 580 g | ||
| Degree of protection | IP65 NEMA 4 | ||
| Corrosion resistance class CRC | 0 - No corrosion stress | ||
| Nominal operating voltage DC | 24 V | ||
| Max. power supply per channel | 0.2 A | ||
| Operational voltage range DC | 21,6 V ... 26,4 V | ||
| Parameterisation | Fail-safe per channel Forcing per channel Idle mode per channel Module monitoring | ||
| Max. number of valve positions | 12 with bistable valves 24 with monostable valves | ||
| Valve terminal interface | Type 44, VTSA |
