| Adapter sleeve reference | H2309 | ||
| Operating temperature min. | -20 °C | ||
| C - Dynamic load rating | 31,85 kN | ||

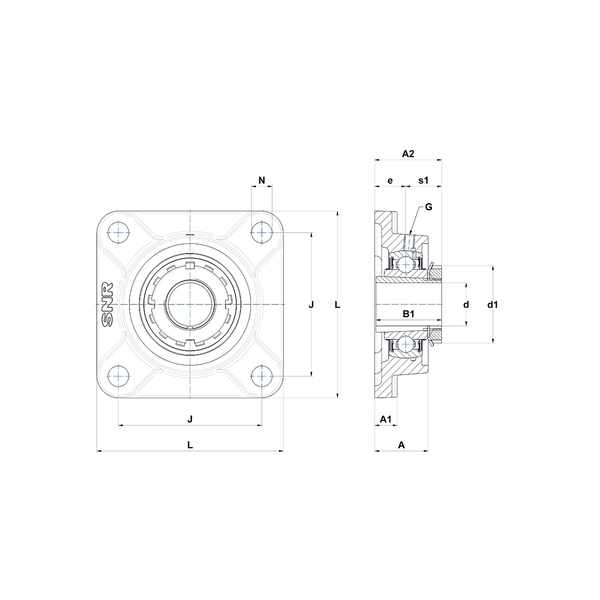

| N - Mounting hole dimension | 16 mm | ||
| J - Mounting holes distance | 105 mm | ||
| e - Distance mounting surface to bearing center | 22 mm | ||
| B1 - Overall width IR (with eccent. locking collar/adapt. sleeve) | 50 mm | ||
| A1 - Housing foot height / flange height | 16 mm | ||
| Brand | SNR |
| Operating temperature max. | 100 °C | ||
| C0 - Static load rating | 20,8 kN | ||
| s1 - Distance nut to middle of bearing raceway | 26 mm | ||
| L - Housing width / diameter | 137 mm | ||
| G - Grease fitting | M6x1 | ||
| d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve | 65 mm | ||
| A2 - Total height from mounting surface | 48 mm | ||
| A - Housing height | 38 mm |
