| Brand | snr | ||
| mass | 0,94 kg | ||
| Operating temperature min. | -20 °C | ||
| C - Dynamic load rating | 19,5 kN | ||

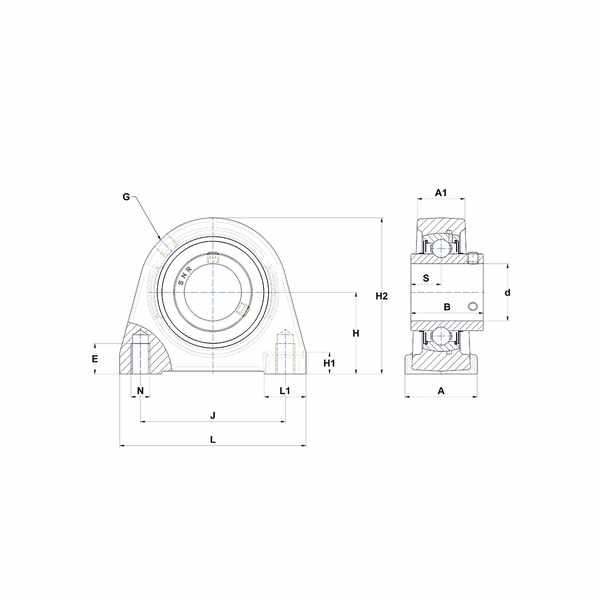

| N - Mounting hole dimension | M10 | ||
| L - Housing length | 98 mm | ||
| H2 - Housing height | 82 mm | ||
| H - Distance mounting base to centerline spheric. seating diam. | 42,9 mm | ||
| E - Mounting hole thread depth | 12,5 mm | ||
| B - Width of Inner Ring | 38,1 mm | ||
| A - Housing width | 38 mm |
| Recommended tightening torque for set screw | 3,7 N-m | ||
| Operating temperature max. | 200 °C | ||
| C0 - Static load rating | 11,2 kN | ||
| S - Distance front side/bearing centre | 15,9 mm | ||
| L1 - Housing foot length | 22 mm | ||
| J - Mounting holes distance | 76,2 mm | ||
| H1 - Housing foot height | 11 mm | ||
| G - Grease fitting | R1/8" | ||
| d - Shaft diameter | 30,163 mm | ||
| A1 - Housing top width | 25 mm |
