| Brand | snr | ||
| mass | 3,87 kg | ||
| Operating temperature min. | -20 °C | ||
| C - Dynamic load rating | 43,55 kN | ||

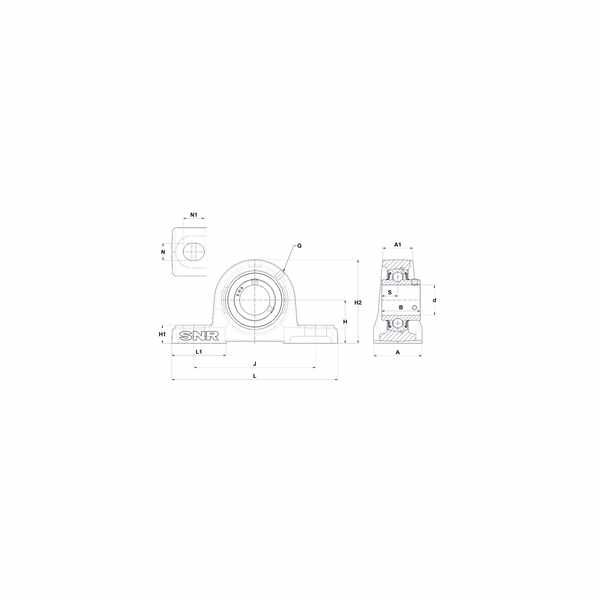

| N1 - Mounting hole length | 25 mm | ||
| L1 - Housing foot length | 70 mm | ||
| J - Mounting holes distance | 171 mm | ||
| H1 - Housing foot height | 22 mm | ||
| G - Grease fitting | M6x1 | ||
| B - Width of Inner Ring | 55,6 mm | ||
| A - Housing width | 60 mm |
| Recommended tightening torque for set screw | 16,8 N-m | ||
| Operating temperature max. | 200 °C | ||
| C0 - Static load rating | 29,2 kN | ||
| S - Distance front side/bearing centre | 22,2 mm | ||
| N - Mounting hole dimension | 20 mm | ||
| L - Housing length | 219 mm | ||
| H2 - Housing height | 126 mm | ||
| H - Distance mounting base to centerline spheric. seating diam. | 63,5 mm | ||
| d - Shaft diameter | 50,8 mm | ||
| A1 - Housing top width | 40 mm |
