| Brand | snr | ||
| mass | 0,47 kg | ||
| Operating temperature min. | -20 °C | ||
| C - Dynamic load rating | 12,8 kN | ||

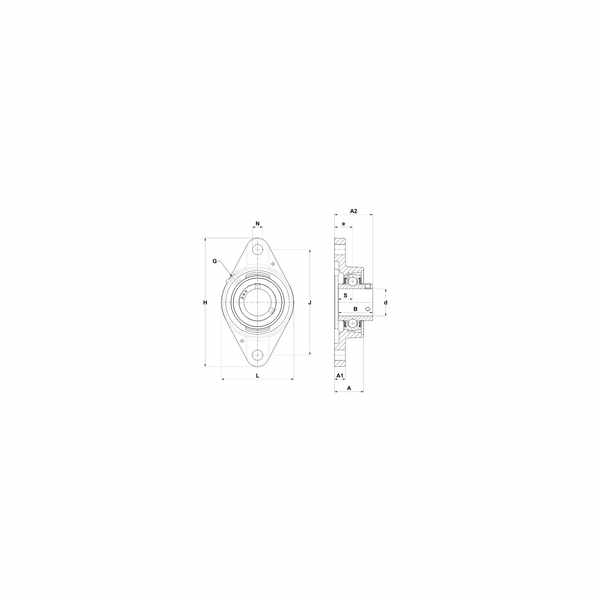

| N - Mounting hole dimension | 11,5 mm | ||
| J - Mounting holes distance | 90 mm | ||
| G - Grease fitting | R1/8" | ||
| d - Shaft diameter | 19,05 mm | ||
| A2 - Total height from mounting surface | 37,3 mm | ||
| A - Housing height | 30,3 mm |
| Recommended tightening torque for set screw | 3,7 N-m | ||
| Operating temperature max. | 100 °C | ||
| C0 - Static load rating | 6,65 kN | ||
| S - Distance front side/bearing centre | 12,7 mm | ||
| L - Housing width / diameter | 61 mm | ||
| H - Housing length, width or diameter | 112 mm | ||
| e - Distance mounting surface to bearing center | 19 mm | ||
| B - Width of Inner Ring | 31 mm | ||
| A1 - Housing foot height / flange height | 10 mm |
