| Brand | snr | ||
| BRF - Rotational frequency – rolling element (60 rpm) | 2,018 Hz | ||
| BPFI - Over rolling frequency on inner (60 rpm) | 4,937 Hz | ||
| Recommended tightening torque for set screw | 5,5 N-m | ||
| Operating temperature max. | 100 °C | ||
| C0 - Static load rating | 6,65 kN | ||
| SW - Wrench size | 3 mm | ||

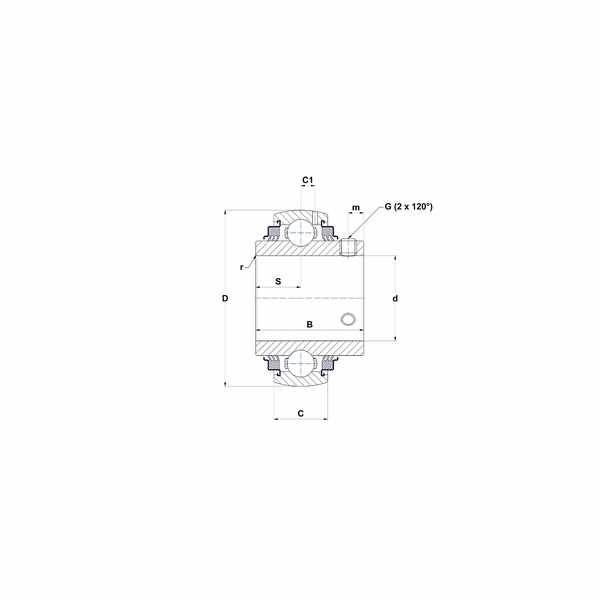

| S - Distance front side/bearing centre | 12,7 mm | ||
| m - Distance to set screw | 4,7 mm | ||
| D - Outer diameter of OR | 47 mm | ||
| C1 - Distance center of OR to center of lubrication zone | 4,4 mm | ||
| B - Width of Inner Ring | 31 mm |
| FTF - Rotational frequency - cage (60 rpm) | 0,383 Hz | ||
| BSF - Over rolling frequency on rolling element (60 rpm) | 4,037 Hz | ||
| BPFO - Over rolling frequency on outer ring (60 rpm) | 3,063 Hz | ||
| mass | 0,2 kg | ||
| Operating temperature min. | -20 °C | ||
| C - Dynamic load rating | 12,8 kN | ||
| f0 - Factor | 13.20 | ||
| r - Radius Inner Ring | 0.60 | ||
| G - Set screw size | M6x1 | ||
| d - Shaft diameter | 15 mm | ||
| C - Width of Outer Ring | 16 mm |
