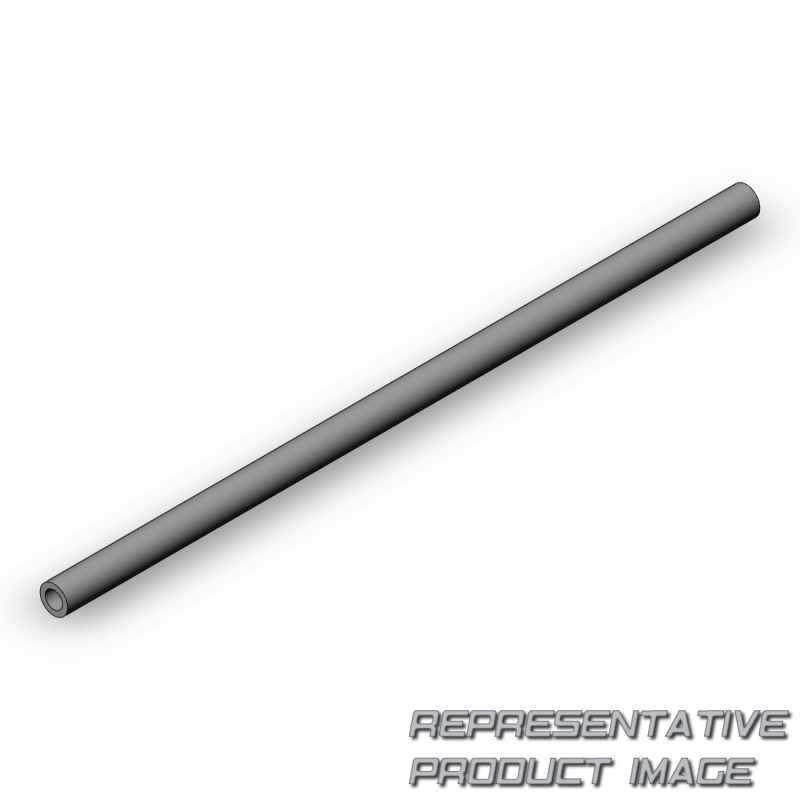

SMC TD0425-10

Name: TD0425-10 SMC
Brand: SMC
SKU: 740424-en-gbp
Price: 50.14 GBP
Availability: InStock

£50.14 ~~£74.17~~ -32%

1 pcs. with 1 to 3 days delivery to United States

Specifications

Size	06 x 04

Weight	177g

Size		metric size
tubing o.d. (mm)		4
roll - 10 m		--
Color		translucent (material color)
applicable fittings note 2)		insert fittingminiature fittings m, ms series (hose nipple type) fluoropolymer fitting lq1 series
max. operating pressure (mpa) - 100c		0.90
max. operating pressure (mpa) - 260c		0.23
min. bending radius (mm) note 3) - refraction value		8
Material		modified ptfe (polytetrafluoroethylene resin)

model		td0425
tubing i.d. (mm)		2.50
roll - 20 m		--
fluid note 1)		air, water, inert gas
max. operating pressure (mpa) - 20c		1.60
max. operating pressure (mpa) - 200c		0.45
min. bending radius (mm) note 3) - recommended radius		15
max. operating temperature (fixed usage)		260c
Weight		.39013 lb
