FESTO 544221 signal converter

Name: 544221 FESTO
Brand: FESTO
SKU: 673341-en-gbp
Price: 206.6 GBP
Availability: InStock

SVE4-IS-R-HM8-2N-M8

£206.60

1 pcs. with 1 to 3 days delivery to United States

Specifications

Series (SVE4)	Signal converter
Signal range (IS)	0 ... 20 mA
Display and operation (R)	Switching status indication with LED; teach-in buttons
Assembly (H)	H-rail mounting

Electrical connection (signal input) (M8)	Socket M8x1, 4-pin
Switching output (2N)	2x NPN
Electrical connection (switching output) (M8)	Plug M8x1, 4-pin

LABS (PWIS) conformity		VDMA24364-B2-L
Degree of protection		IP65
Material housing		ABS
Electrical connection 2, connection pattern		00991171
Electrical connection 2, number of connections/cores		4
Electrical connection 2, connection type		Plugs
Electrical connection 1, type of mounting		Screw-type lock
Electrical connection 1, connector system		M8x1, A-coded, to EN 61076-2-104
Operational voltage range DC		10 V ... 30 V
Short circuit current rating		Pulsed
Switching function		Freely programmable
Ambient temperature		-20 °C ... 70 °C
Note on materials		RoHS-compliant
CE mark (see declaration of conformity)		To EU EMC Directive In accordance with EU RoHS Directive
Approval		RCM trademark c UL us listed (OL)

Corrosion resistance class CRC		2 - Moderate corrosion stress
Setting options		Teach-in
Product weight		19 g
electrical connection 2, type of mounting		Screw-type lock
Electrical connection 2, connector system		M8x1, A-coded to EN 61076-2-104
Electrical connection 1, connection pattern		00991872
Electrical connection 1, number of connections/cores		4
Electrical connection 1, connection type		Socket
Overload protection		Available
Switching element function		Switchable
Switching output		2xNPN
analog input		0 - 20 mA +/-0.6 mA
CE marking (see declaration of conformity)		To UK instructions for EMC To UK RoHS instructions
UL ambient temperature		-20 °C ... 60 °C

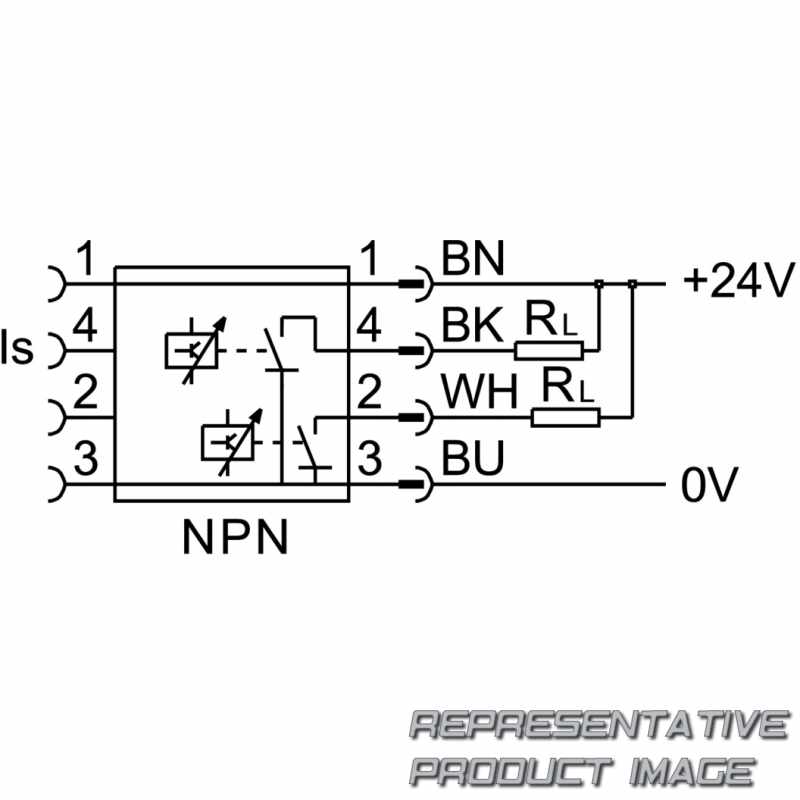

Symbol		00991963
