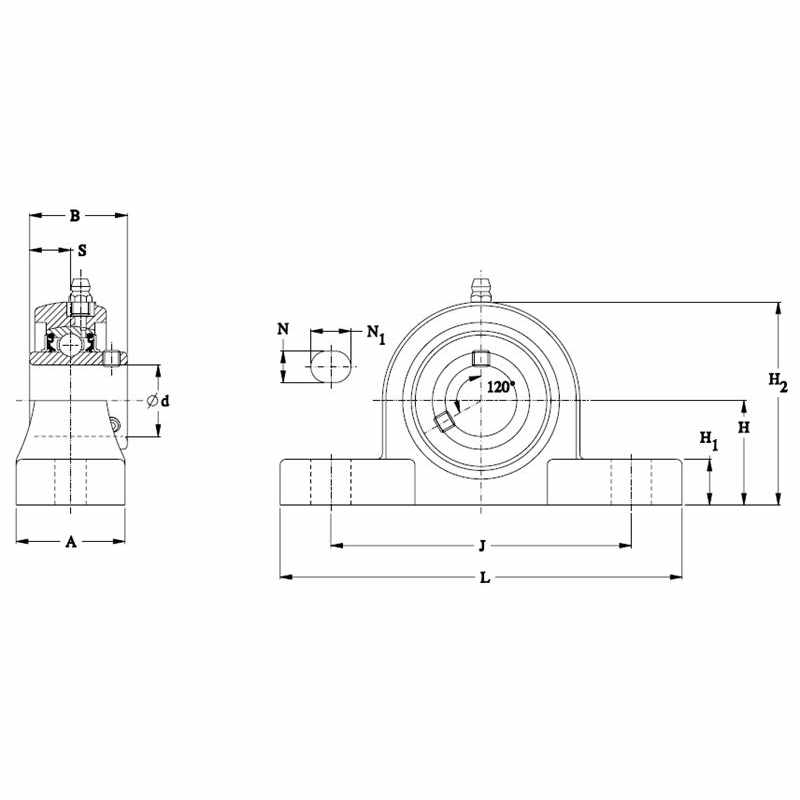

| Inner Ring Width B | 42.90 | mm | |
| Bolt Hole Length N1 | 18 | mm | |
| Foot Height H1 | 18 | mm | |
| Dimension L1 | 39 | mm | |
| Total Height H2 | 94.50 | mm | |
| Housing Width A | 48 | mm |
| Center of Bearing from End S | 17.50 | mm | |
| Bolt Hole Size N | 14 | mm | |
| Base to Center Height H | 47.60 | mm | |
| Bolt Hole Spacing J | 127 | mm | |
| Total Length L | 168 | mm |
| Bearing Style | Ball Bearing | ||
| Locking Style | Set Screw Locking | ||
| Lubrication Type | Standard Food Safe Grease | ||
| Bearing Number | SUC207/F |
| Housing Construction | Two-Bolt Pillow Block | ||
| Weight | 0.75 | Kg | |
| Bore Size | 35 | mm | |
| Housing Material | White Thermoplastic (Polymer) |
